M03 5.8G VTX
M03 5.8G VTX
M03 5.8G VTX
M03 5.8G VTX

M03 5.8G VTX

BETAFPV
850.00 ฿
850.00 ฿
Shipping calculated at checkout.

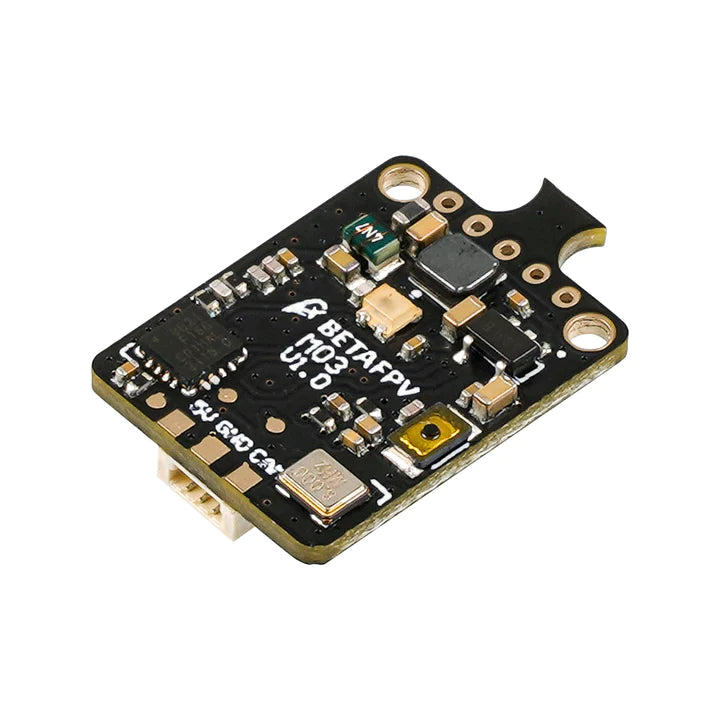

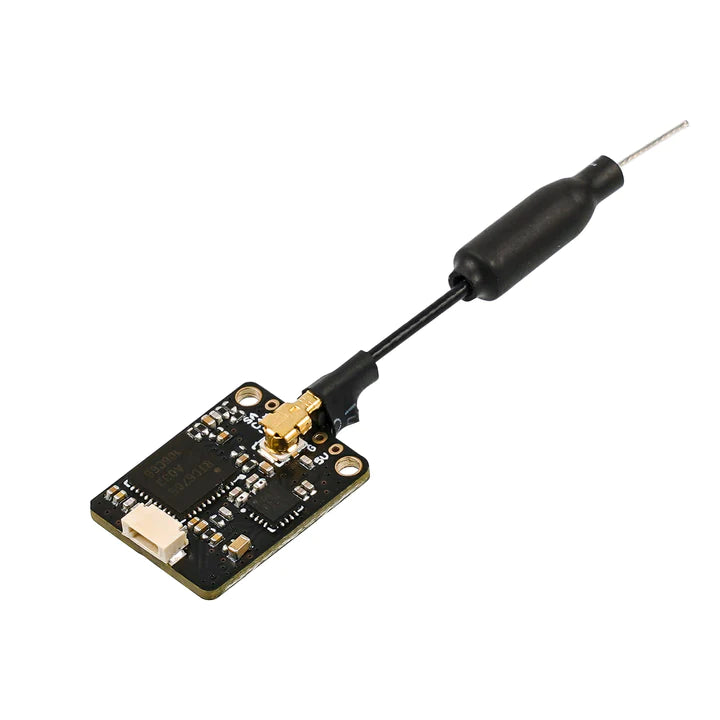

  • M03 VTX, a ultralight and high output power 5.8GHz analog VTX, is designed for 65-85mm whoop drone for longer range flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and fun.

    Note: The current version for M03 VTX is V1.1.

        Specification

        • Item: M03 5.8G VTX
        • Output power: PIT/25/100/200/400mW (V1.1, adjustable)
        • Supply voltage range: 4.5-5.5V

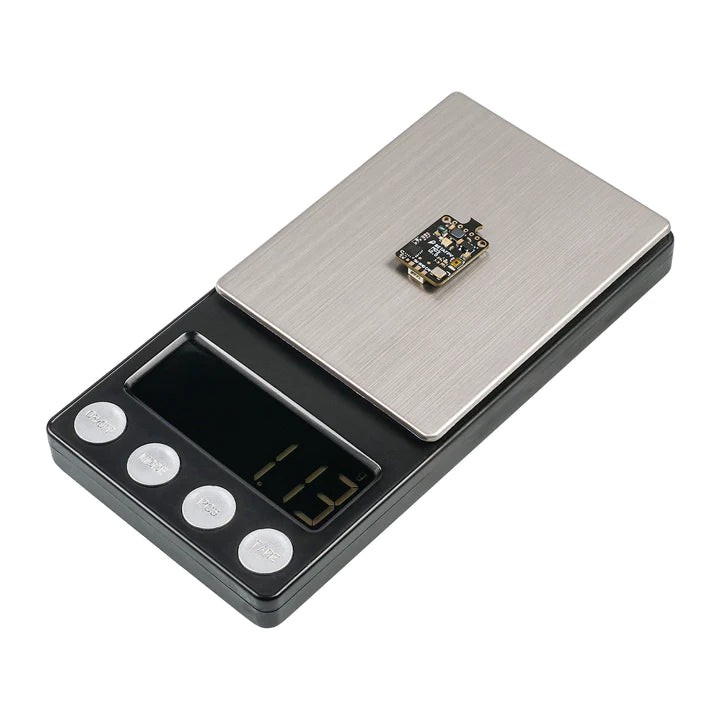

        • Weight: 1.1g (antenna not included)
        • VTX internal size: 18X14mm
        • Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
        • Channel SEL: SmartAudio
        • Modulation type: FM
        • Frequency control: PLL
        • All harmonic: Max -50dBm
        • Frequency stability: ±100KHz (Typ.)
        • Frequency precision: ±200KHz (Typ.)
        • Channel carrier error: ±1.5dB
        • Antenna port: 50 Ω
        • Operating temperature: -10℃~+80℃
        • Camera connector: JST-0.8.







        Change Band & Channel & Power

        M03 VTX could only use the Smart Audio port to change the band and channel.  Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then FEATURES -> VTX SA to change the frequency point and power.

        Switchable power includes 25mW, 100mW, 200mW and 350mW. Except the method via OSD menu as show above, the output power could be changed via the power button.
