PRODUCT DESCRIPTION
FC // SucceX-E F7
Top Features:
- Gold-plated plug
- BlackBox: 16MB
- Vista HD Plug-and-Play. No need to solder tiny wires.
- BAT, +5V, 3.3, Start indicator
- Smartaudio & IRC Tramp VTX protocol supported
Specifications:
- MCU: STM32F722 216MHz
- Gyro: MPU6000
- Baro: NO
- OSD: IFLIGHT OSD （AT7456E）
- BEC: 5V 2.5A
- BlackBox: 16MB
- Uart: 4*UART(UART1、UART2、UART4、UART5)
- UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry
- UART2 for Receiver
- UART4 for Free
- UART5 for ESC Telemetry
- 4×Dshot/PWM outputs
- Smartaudio & IRC Tramp VTX protocol supported
- WS2812 led Strip: Yes
- Bepper: Yes
- Firmware: IFLIGHT_SUCCEX_E_F7
- Outer Size: 36*36mm / 30.5*30.5/φ4 mounting

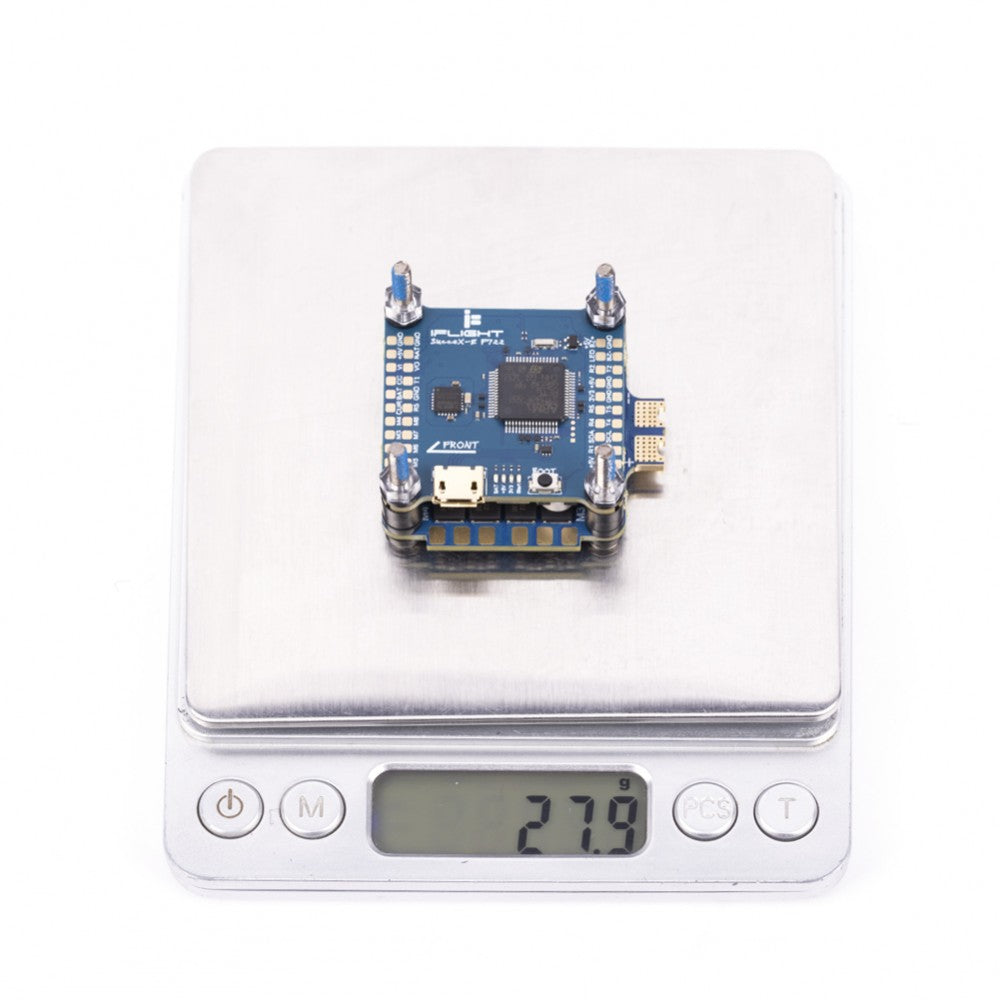

- Weight: 6.9g
Physical
- Mounting hole: 30.5*30.5mm，φ4mm
- Size: 36*36mm
ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
- Dimension: 40*43mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight: 14.4g
- Supports 2-6S Lipo input
- EFM8BB21 MCU, 24Mhz Runs BLHELI 16.X Firmware
- Current sensor: YES
- BEC: NO
- Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
- Target: G-H-30 BLS 16.7
Package included：
- SucceX-E F7 FC x 1
- SucceX-E 45A ESC x 1
