Features:
*No Props or frame in view!
*High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
*T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
*Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
*Low Resonance frame construction (Less Jello, more Cinematic footage)
*DJI FPV Air Unit 720p 120fps FPV feed (record in 1080p/60fps)
*Butter smooth 2203.5 3600KV (4S)
*Pre-tuned with smooth freestyle settings
PRE-TUNED & PRE-SETUP:
Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

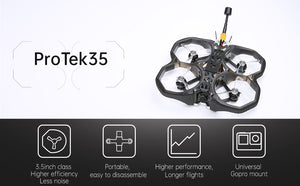

ProTek35 BNF Specs:
*Board Beast Whoop F7 AIO 45A
*Motor: XING 2203.5 3600KV (4S)
*Wheelbase: 151mm
*Body Size: 118*94.5mmmm
*Bottom plate thickness: 3.5mm
*Top plate thickness: 2mm

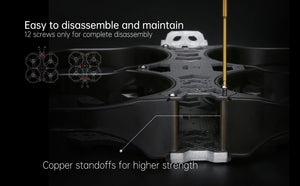

*Top and bottom plate spacing: 20mm (aluminum standoff height)
*Propeller size: 3.5 inch
*FC pattern: 25.5*25.5mm / 20*20mmmm
*FPV cam spacing: 20mm
*Weight: 348.3g (without battery)
ProTek35 HD Quad BNF Included Components and Parts
pre-built and tested Quadcopter
1 x ProTek35 Frame
1 x DJI FPV Camera
1 x DJI FPV Air Unit Module
2 x DJI FPV Air Unit Antenna SMA
1 x TPU Bracket for DJI Air Unit Module
1 x TPU Antenna holder for DJI antenna
2 x TPU camera side plate soft mount
2 x Nazgul 3535 propeller (Set of 4 - Color May Vary)
1 x iFlight Lipo Strap 15*150mm (Color May Vary)
1 x iFlight Lipo Strap 15*250mm (Color May Vary)
1 x GoPro TPU bottom stand black (GoPro Protector not included)
1 x Crossfire Nao receiver
FC // Beast F7 AIO
MCU: BGA-STM32F745
Gyro: MPU6000
UARTs: 5
Blackbox: 8Mb Onboard Flash
BEC output: 5V 2.5A
Barometer: BMP280
Connector: Micro-USB
OSD: AT7456E
FC Firmware：IFLIGHT_F745_AIO
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Weight: 8.5g
ESC // 45A 2-6S
*Current Sensor: Yes
*Input: 2-6S LIPO
*Current scale: 200
*Constant: 45A / Burst: 50A
*BLHeli: BLHeli-S
*RPM-Filter ready: Yes (JazzMaverick or JESC firmware)
*Telemetry: no
*ESC Firmware: BlheliS G-H-30
*Mounting pattern: 25.5*25.5mm/Φ3mm
Important
The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.
