RadioMaster TX16S Hall Sensor Gimbals 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter for RC Drone
Open TX Radio Firmware Click Here
Multi-Module Firmware Click Here
Note: Orders placed before July 9th,the tx16s mode 2 version has been shipped, Orders placed before July 1th,the tbs mode2 version has been shipped.

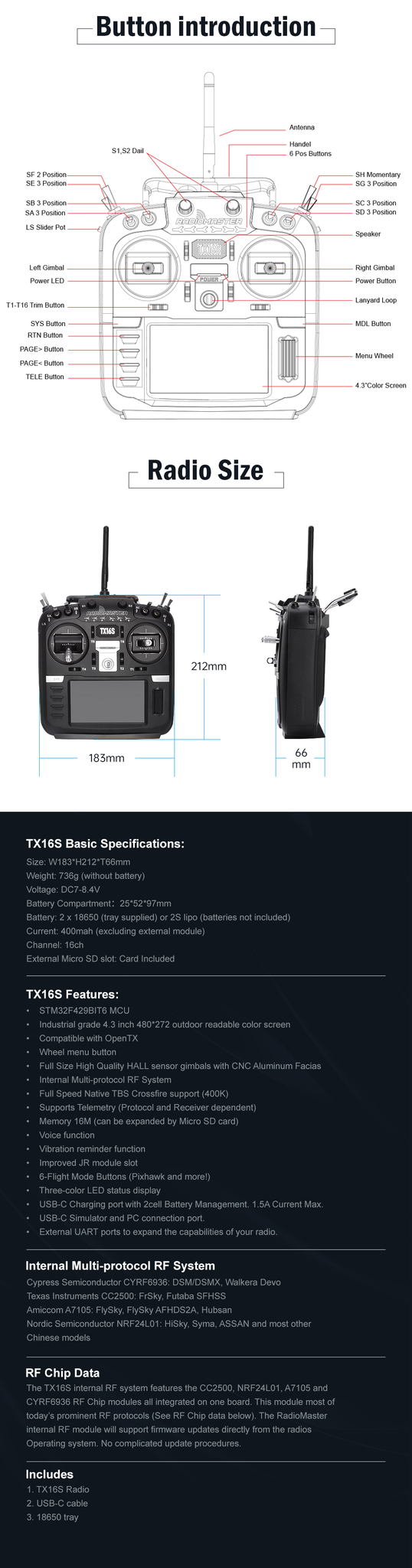

Description: (User Manual)
Brand Name: RadioMaster
Item Name: TX16S Transmitter Channel: 16CH
Mode: Mode2 Size: 183*212*66 mm
Weight: 736g (without battery)
Voltage: DC7-8.4V

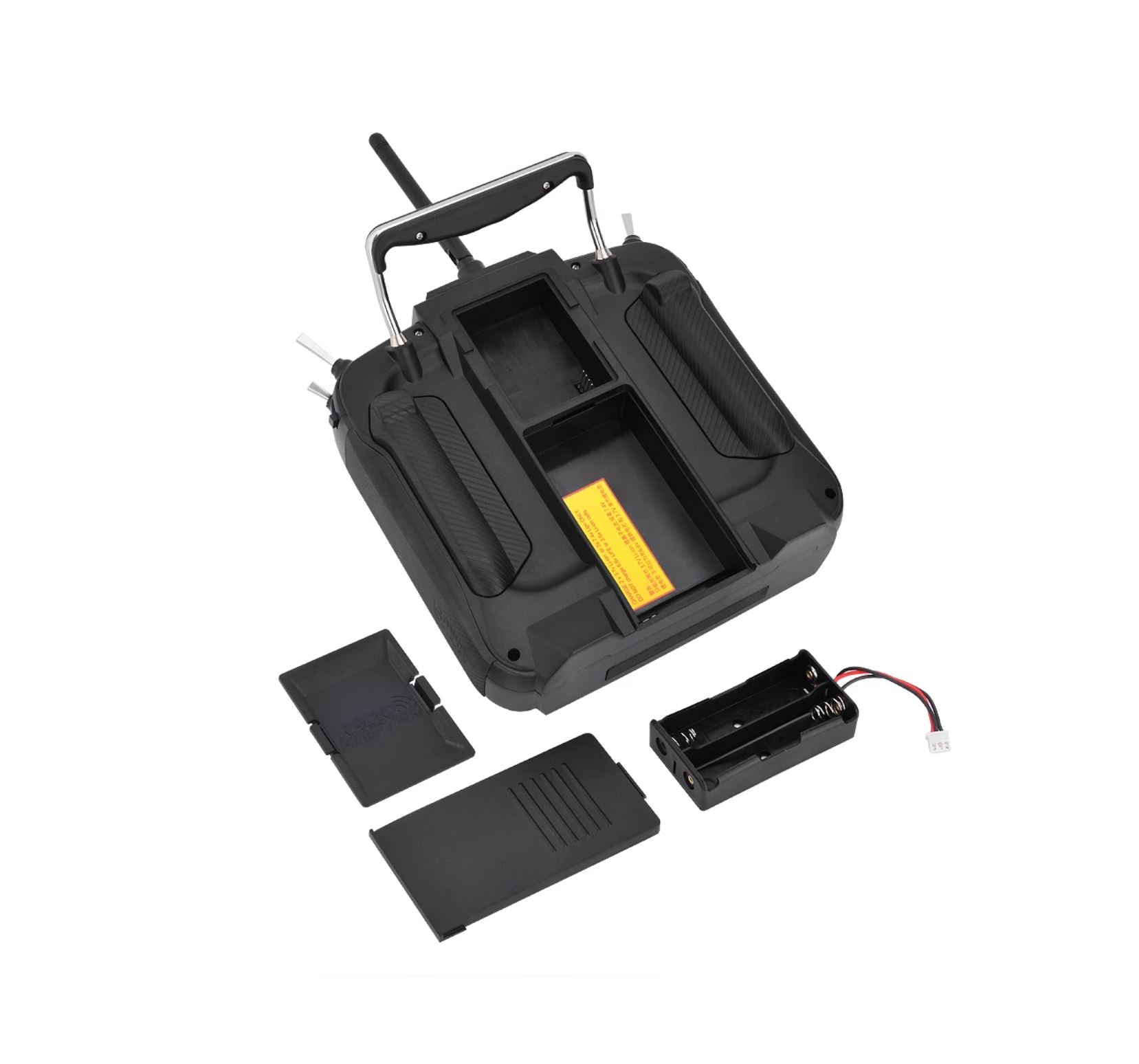

Battery Compartment: 25*52*97mm
2 x18650 (tray included) , 21700 7.4v 2s Pack or 7.4v 2s Lipoly (Batteries not included)
Current: 400mah (excluding external module)
External Micro SD slot: Card Included
2 x External UART Expansion Ports
Touch Panel Ready (requires OpenTX 2.4 and Upgrade Panel Sold seperatly)
Features:
STM32F429BIT6 MCU
Industrial grade 4.3 inch 480*272 outdoor readable color touch panel screen
Compatible with OpenTX
Wheel menu button
Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias
Internal Multi-protocol RF System
Full Speed Native TBS Crossfire support (400K)
Supports Telemetry (Protocol and Receiver dependent)
Memory 16M (can be expanded by Micro SD card)
Voice function
Vibration reminder function
Improved JR module slot
6-Flight Mode Buttons (Pixhawk and more!)
Three-color LED status display
USB-C Charging port.
USB-C Simulator and PC connection port
External UART ports to expand the capabilities of your radio.
Internal Multi-protocol RF System
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futabas SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
RF Chip Data
The TX16S internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. No complicated update procedures.
Package included: 1 x TX16S/TX16S with TBS Crossfire MicroTX (Optional)
1 x USB-C Cable
1 x 18650 Tray 1 x Throttle Return Springs |
