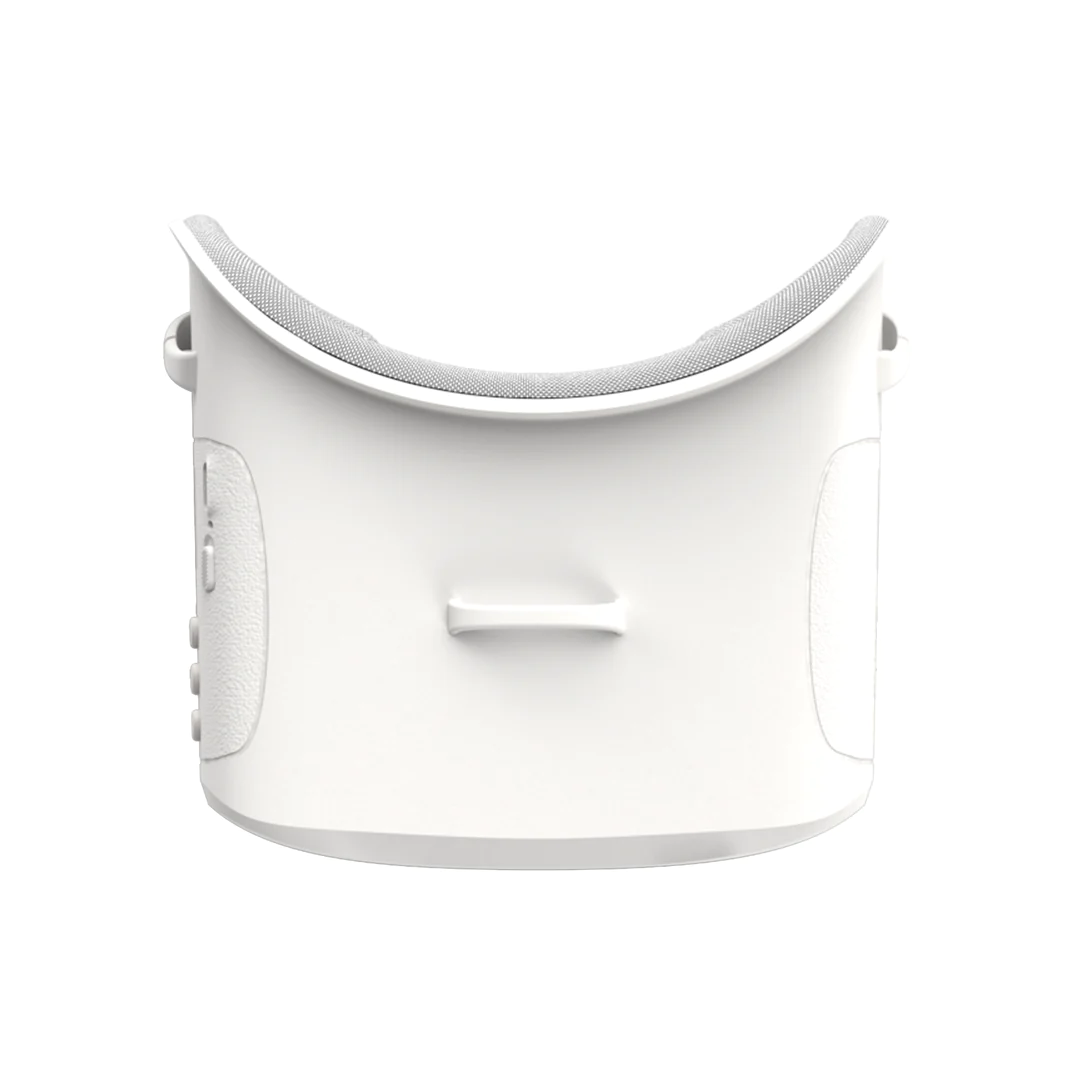

BETAFPV VR02 Analog FPV Goggles

Vendor: BETAFPV
Regular price: Sold out
Sale price: 1,750.00 ฿
Unit price: per

Shipping calculated at checkout.

VR02 FPV Goggles - the First-Person-View Goggle with more simpler operation and powerful function, is specially designed for FPV starters.

Bullet Point

With the built-in antennas and structure patented design, the VR02 Goggles is more compact and exquisite, less than 300g lightweight is more comfortable for wearing and carrying.
VR02 goggle comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights.
With 4.3 inches 800*480px HD high brightness LCD, VR02 Goggles will show you a bright world without warped and blurred images, which is specially tuned for FPV racing or Model airplanes.
Upgraded the frequency sweep function and the fast frequency auto-search function(only 2.5 seconds), pilots can easily find a band and channel with a stronger signal for a better flight experience.
The advanced auto-searching function will show you the working frequency on the screen vividly.
Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.

Part	Specification
BODY	Dimension: 126x143x86.3mm Weight: 300g with 2hr 2000mAh battery Belt: Three-Ways adjustable belt
SCREEN	screen size: 4.3 inch Screen resolution: 800*480 px Screen brightness: 300cd/m2 View Angle: 55°
JACK	Type-C Charging Voltage: 3.7V, the device operating current of 500mA@3.7V Current: 500mA
BATTERY	Built-in 3.7V/2000mAh high-capacity polymer battery, LED turn on while charging. When charging is completed, the LED will turn off. Each full charge revive is around 2 hours working time

BETAFPV Patented Design

With the built-in antennas and the special design of the Goggles lens, the VR02 Goggles is more compact and exquisite, which makes it maintains a small and lightweight body.

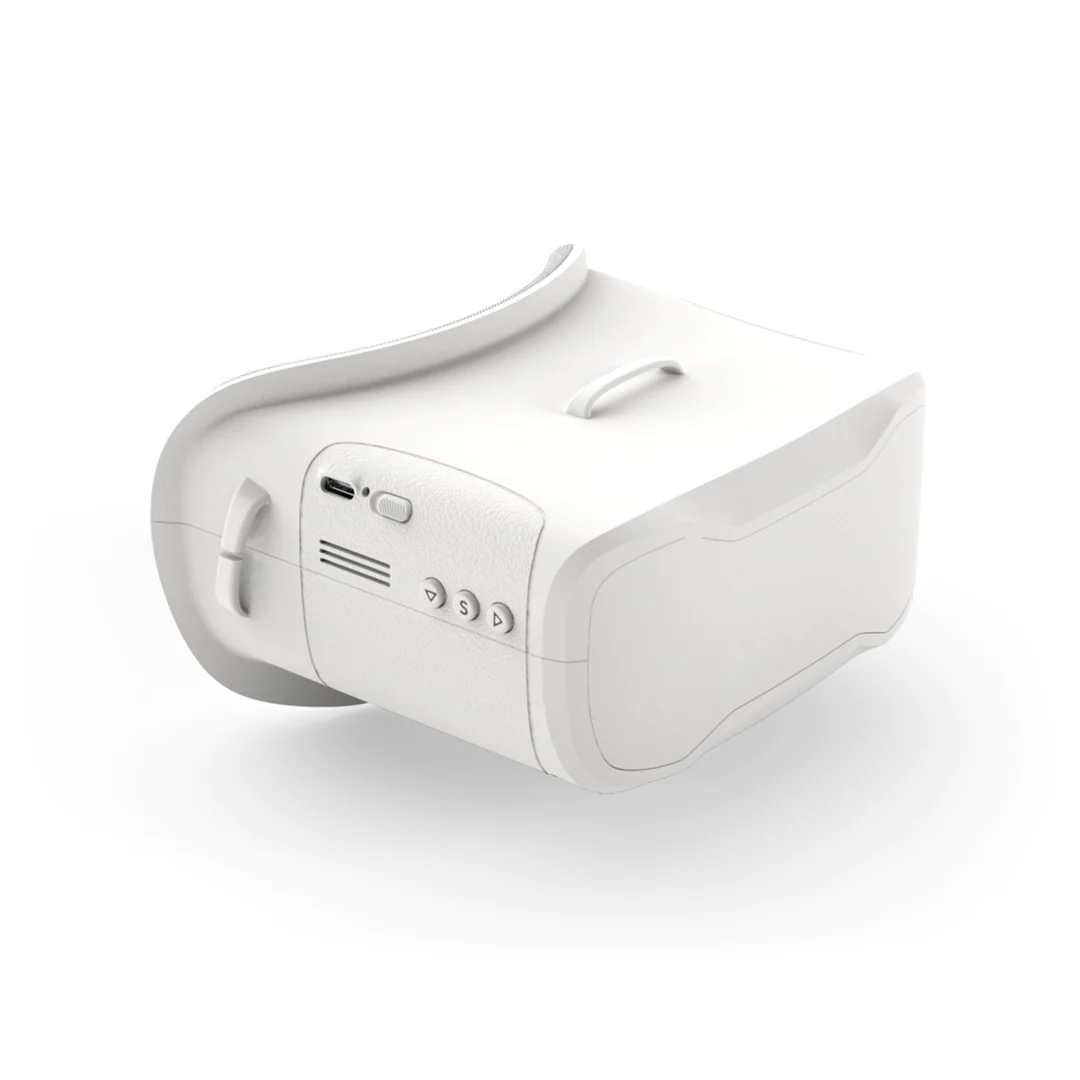

Operation Instructions

Button	Instruction
Power On/Off	Flick to the left to turn off, and to the right to turn on, the screen will light up after a normal boot.
Band+	Short press for Band+ option A, B, E, F, R, L cycle selection.
Search	After powering on, short press the "S" button to enter the sweeping interface. Press and hold the "S" button for 1 second to start the frequency auto-search.
CH+	Short press for CH 1~8 cycles.

Band and Channel Selection

CH	CH 1 (MHZ)	CH 2 (MHZ)	CH 3 (MHZ)	CH 4 (MHZ)	CH 5 (MHZ)	CH 6 (MHZ)	CH 7 (MHZ)	CH 8 (MHZ)
GROUP	CH 1 (MHZ)	CH 2 (MHZ)	CH 3 (MHZ)	CH 4 (MHZ)	CH 5 (MHZ)	CH 6 (MHZ)	CH 7 (MHZ)	CH 8 (MHZ)
A	5865	5845	5825	5805	5785	5765	5745	5725
B	5733	5752	5771	5790	5809	5828	5847	5866
E	5705	5685	5665	5645	5885	5905	5925	5945
F	5740	5760	5780	5800	5820	5840	5860	5880
R	5658	5695	5732	5769	5806	5843	5880	5917
L	5362	5399	5436	5473	5510	5547	5584	5621

BETAFPV VR02 FPV Goggles has a frequency sweep function and a fast frequency auto-search function, it will help pilots find a stronger Band to get a better flight experience.
The frequency sweep function can display the occupancy status of each channel in the current space so that pilots can fly with a better Band and enhance the flight experience.

How to use the frequency sweep function?

After powering on, short press the "S" button to enter the sweeping interface, as shown below. Pilots can change the Band via the "Band+" and "Ch+" buttons.

Band Status Indicator

Green	0<RSSI<20, not occupied
Yellow	20<RSSI<70, there is a drone occupying the Band far away, or there is interference
Red	70<RSSI<99, occupied
White	current Band (highest RSSI in the sweep result)

How to use the fast frequency search function?

After powering on, press and hold the "S" button for 1 second to start the frequency auto-search. The frequency auto-search process is 2.5 seconds. After the frequency auto-search is over, it will beep twice and jump to the corresponding Band of the drone.

Package

1 * BETAFPV VR02 FPV Goggles
1 * Adjustable Headband
