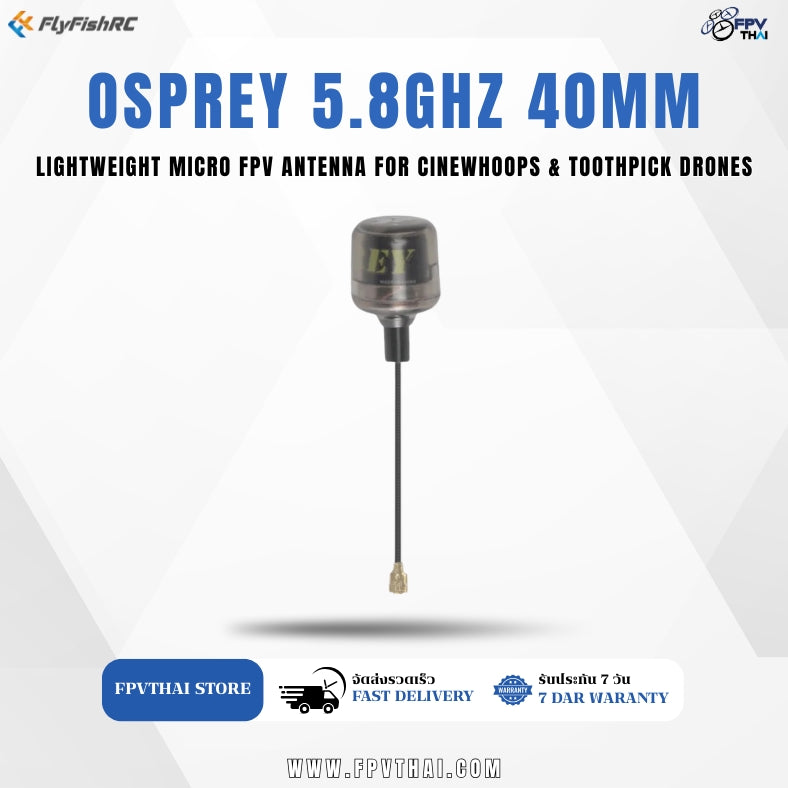

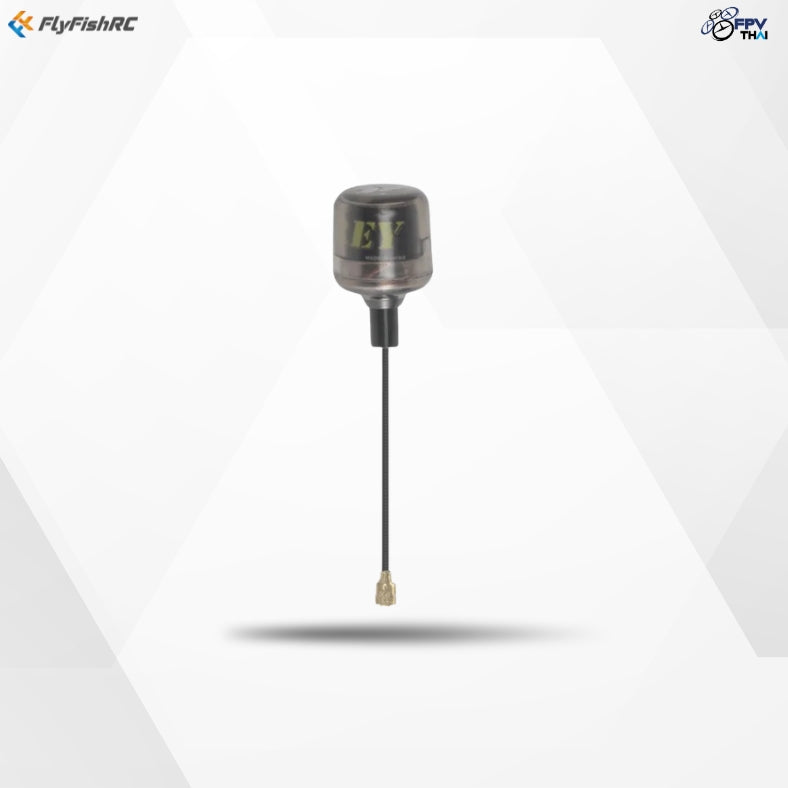

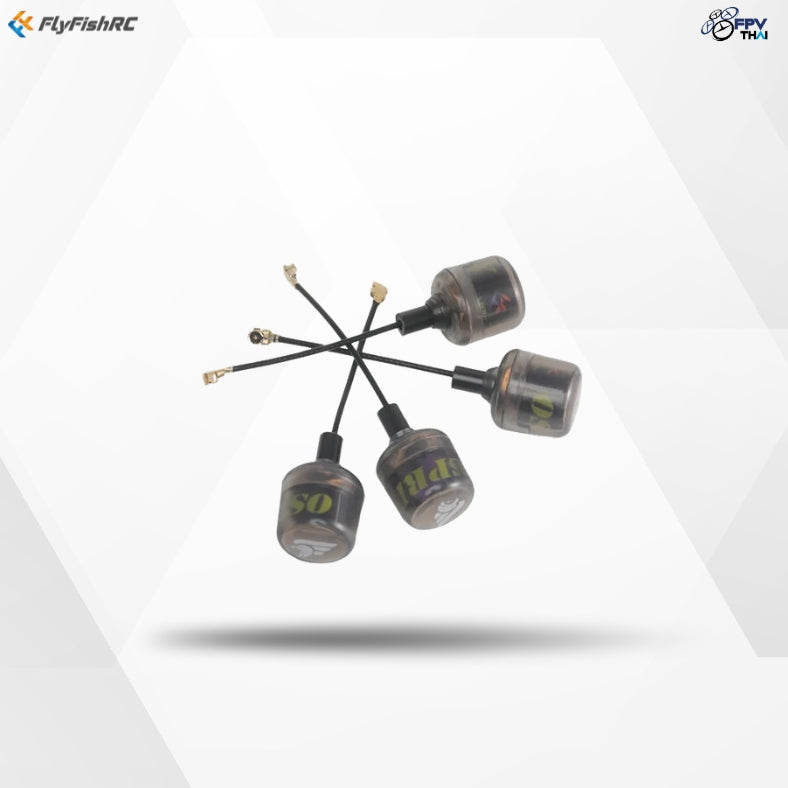

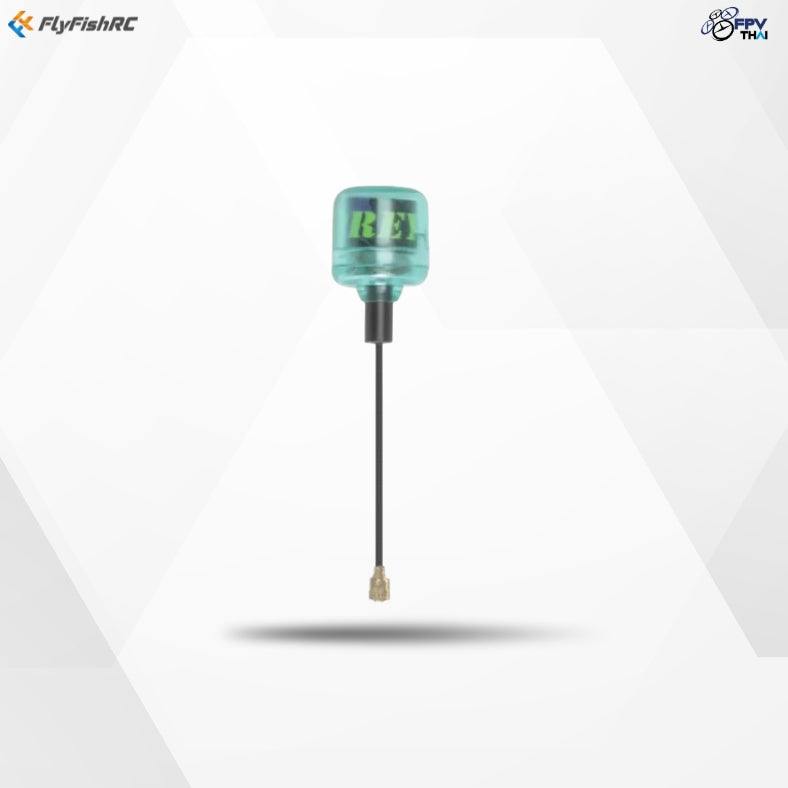

FlyFishRC Osprey 5.8GHz 40mm IPEX/u.FL RHCP Stubby Antenna – เสาอากาศส่งภาพ 5.8G ทรง Stubby สายยาว 40 มม. หัวต่อ u.FL แบบวนขวา (RHCP) สำหรับโดรน FPV ขนาดเล็ก และ CineWhoop
รายละเอียดสินค้า: FlyFishRC Osprey 5.8GHz Stubby Antenna คือเสาอากาศส่งภาพ FPV ขนาดกะทัดรัด น้ำหนักเบาพิเศษ ออกแบบมาสำหรับโดรน FPV ไซส์เล็ก, Micro Freestyle, และ CineWhoop ที่ต้องการความคล่องตัว สูงโปรไฟล์ต่ำ และลดโอกาสเสาอากาศไปเกะกะหรือโดนใบพัดปั่นขาด
ตัวเสามาพร้อมความยาวสาย 40 มม. และหัวต่อแบบ IPEX / u.FL สำหรับเสียบต่อเข้ากับตัวส่งภาพ (VTX) ได้โดยตรงโดยไม่ต้องใช้หัวแปลง โครงสร้างภายนอกหุ้มด้วยเคสโพลีคาร์บอเนต (PC) ที่ทนทานต่อแรงกระแทก ยืดหยุ่น และผ่านการเชื่อมด้วยระบบอัลตราโซนิก ป้องกันน้ำและความชื้นได้ดี ภายในใช้การกระจายคลื่นแบบวนขวา RHCP (Right-Hand Circular Polarization) ให้สัญญาณภาพที่เสถียร คมชัด ลดคลื่นสะท้อนรบกวน (Multipath Interference) ได้อย่างยอดเยี่ยม
คุณสมบัติเด่น:
-
ทรง Stubby กะทัดรัด น้ำหนักเบา: ทรงเตี้ย ลดต้านลม ไม่เกะกะ เหมาะกับโดรนไซส์เล็กที่เน้นความคล่องตัว
-
หัวต่อ IPEX / u.FL เสียบตรง VTX: สายยาว 40 มม. เหมาะสำหรับการเดินสายในเฟรมขนาดเล็ก เสียบเข้ากับตัวส่งภาพอนาล็อกหรือดิจิทัลได้ทันที
-
สัญญาณวนขวา RHCP เสถียรสูง: กระจายคลื่นแบบ Circular Polarization ช่วยตัดคลื่นสะท้อนรอบข้าง ทำให้ภาพ FPV ชัดเจน นิ่ง ไม่พริ้ว
-
เคสกันกระแทกทนทานพิเศษ: ฝาครอบผลิตจากพลาสติก PC แข็งแรง ทนต่อแรงชนเมื่อเกิดอุบัติเหตุ ช่วยปกป้ององค์ประกอบรับสัญญาณภายใน
-
เกนส่งสัญญาณ 2.2dBi: ให้สัดส่วนการกระจายคลื่นที่ครอบคลุมรอบทิศทาง (Omnidirectional) บินได้รอบตัวโดยสัญญาณไม่ขาดหาย
ข้อมูลทางเทคนิค (Specifications):
-
แบรนด์: FlyFishRC
-
ซีรีส์: Osprey
-
ย่านความถี่: 5.8GHz (5.6GHz - 6.0GHz)
-
รูปแบบคลื่น (Polarization): RHCP (Right-Hand Circular Polarization)
-
เกน (Gain): 2.2 dBi
-
ค่า Axial Ratio: < 1.0
-
ประสิทธิภาพการส่ง (Radiation Efficiency): > 95%
-
หัวต่อ (Connector): IPEX / u.FL
-

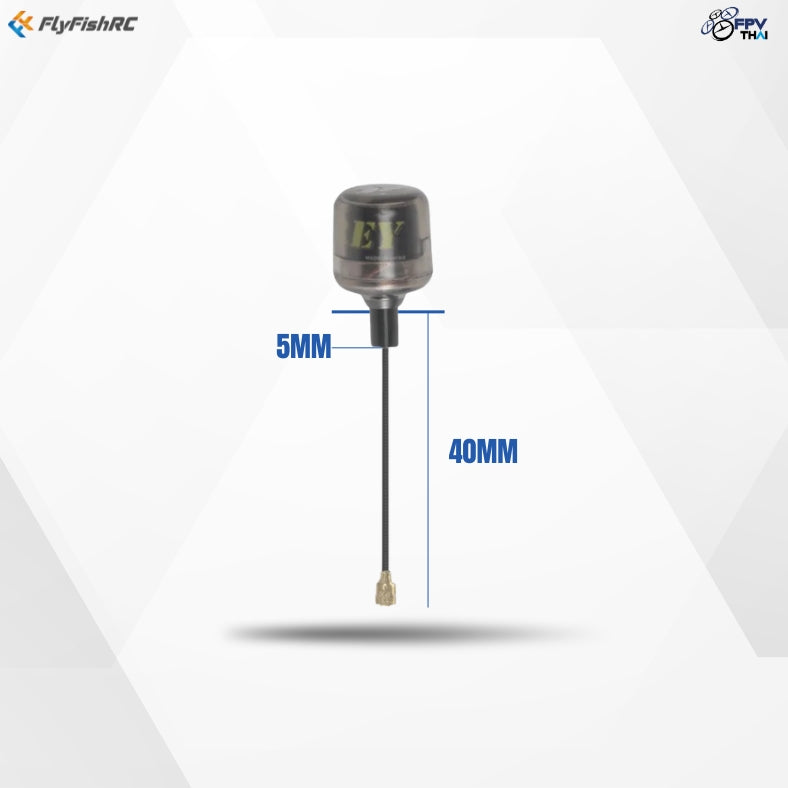

ความยาวสาย: 40 มม.
-
วัสดุเคส: โพลีคาร์บอเนต (Polycarbonate / PC)
-
น้ำหนัก: ประมาณ 2.1 กรัม
FlyFishRC Osprey 5.8GHz 40mm IPEX/u.FL RHCP Stubby Antenna – Lightweight Micro FPV Antenna for CineWhoops & Toothpick Drones
Product Description: The FlyFishRC Osprey 5.8GHz Stubby Antenna is an ultra-compact, lightweight omnidirectional antenna tailored for micro FPV quads, toothpicks, and ducted CineWhoops. Designed with a low-profile stubby form factor, it minimizes drag, saves space, and protects against prop strikes during hard crashes.
Featuring a 40mm RG113 coax cable with a standard IPEX / u.FL connector, it plugs directly into compatible analog and digital video transmitters without extra adapters. Built with Right-Hand Circular Polarization (RHCP) and protected inside an ultrasonically sealed polycarbonate casing, the Osprey delivers rock-solid 5.8GHz video clarity, high radiation efficiency, and superior resistance to multipath interference.
Key Features:
-
Ultra-Compact Stubby Profile: Low-profile housing reduces overall weight and profile, preventing antenna damage during crashes or prop contact.
-
Direct IPEX/u.FL Connection: Comes with a 40mm flexible cable for clean internal routing straight to your VTX board.
-
RHCP Polarization Quality: Right-Hand Circular Polarization effectively repels signal multipathing for a cleaner, flicker-free FPV video feed.
-
Impact-Resistant PC Housing: Durable polycarbonate shell protects delicate internal antenna elements from severe impact and moisture.
-
2.2dBi Omnidirectional Gain: Ensures uniform, 360-degree signal coverage so your video feed stays clear regardless of quad orientation.
Specifications:
-
Brand: FlyFishRC
-
Series: Osprey
-
Frequency Range: 5.8GHz (5.6GHz - 6.0GHz)
-
Polarization: RHCP (Right-Hand Circular Polarization)
-
Gain: 2.2 dBi
-
Axial Ratio: < 1.0
-
Radiation Efficiency: > 95%
-
Connector Type: IPEX / u.FL
-
Cable Length: 40 mm
-
Shell Material: Polycarbonate (PC)
-
Weight: ~2.1 g
