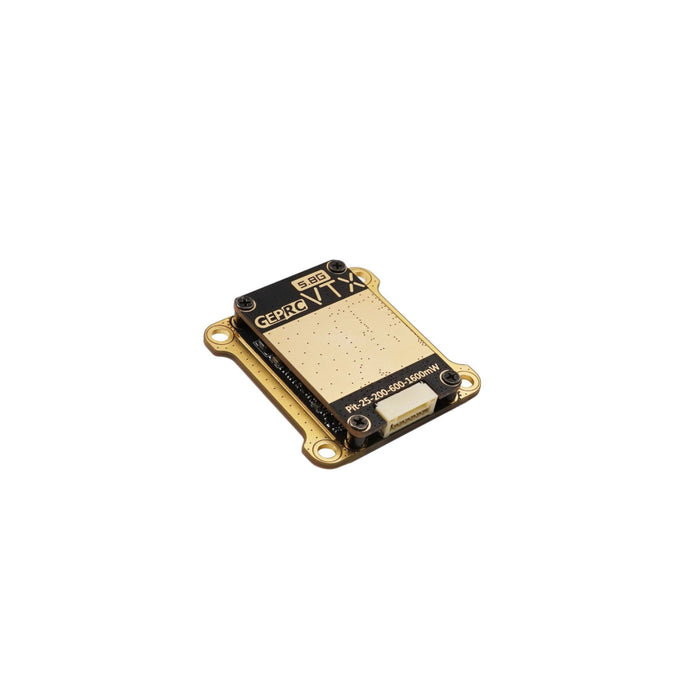

GEPRC RAD VTX 5.8G 1.6W

Shipping calculated at checkout.

1600mW Super power ,Suitable for Long Range flight with good stability.
Five power channel: PIT mode/25mW/200mW/600mW/1600mW.
Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.
Temperature control protection function that can prevent high temperature burning
Wide voltage input, Supports 7V-36V Voltage input.
VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
VTX built in microphone,Real-time transmission of Drone’s sounds.
Has 3 regional frequency tables to meet the needs of various regions.
Two function buttons, three indicator lights, easy to control.
Mounting hole is 30.5mmx30.5mm.

Model: GEPRC RAD VTX 5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(power 5V to Camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna interface: MMCX
Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE
Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36×36.5×5.5mm
Weight: 9.7g(without cable)
Mounting hole: 30X30mm(M3)
