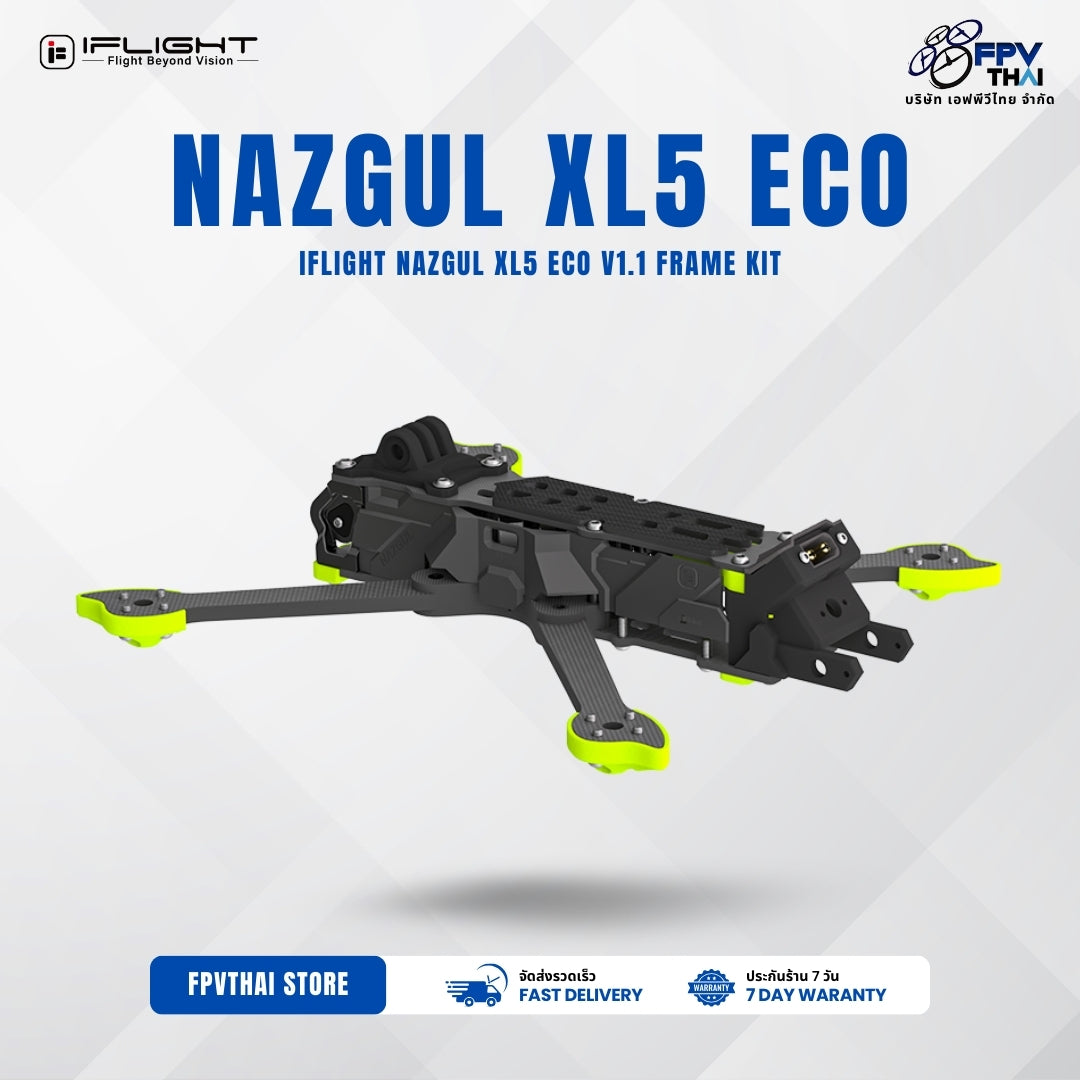

The iFlight Nazgul XL5 ECO frame is a 5" freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control.
This Frame kit and the Nazgul5 V3 Frame kit are the same Frame kit.
July 19, 2024: Battery Plug mount updated to a fixed form. The frame kit upgraded to V1.1.
Sept. 10, 2024: Product upgrade, the side panels will be installed by default.
5" version also fits 5.1" style propellers
Fits both 30.5x30.5 and 20x20 stacks
Compatible with DJI O3 HD System
5mm arm design for more durability
Popular True-X configuration
LED illuminated Logo
TPU crash-guards
Easy-Swap arms
Product Name: Nazgul XL5 V1.1 ECO Frame Kit
Geometry: True-X
Wheelbase: 245mm
Frame Dimension: L173*W173*H36.5 mm
Frame Body Dimension: 33.5mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2.5mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Max Flight Stack Height: 22mm
Max VTX Height: 29mm
Motor Mounting：16x16mm
VTX Mounting：30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 233g (Included no TPU Parts)
1 x Nazgul XL5 V1.1 ECO Frame Kit
1 x GoPro TPU Base Mount
1 x Screw Bag
4 x TPU Armguard
1 x Bottom Plate Front Protection TPU
1 x Bottom Plate Rear Protection TPU
1 x Anti-slip Battery Pad
4 x Motor Wire Shield Tube
2 x Battery Strap(20*250mm)
