Description

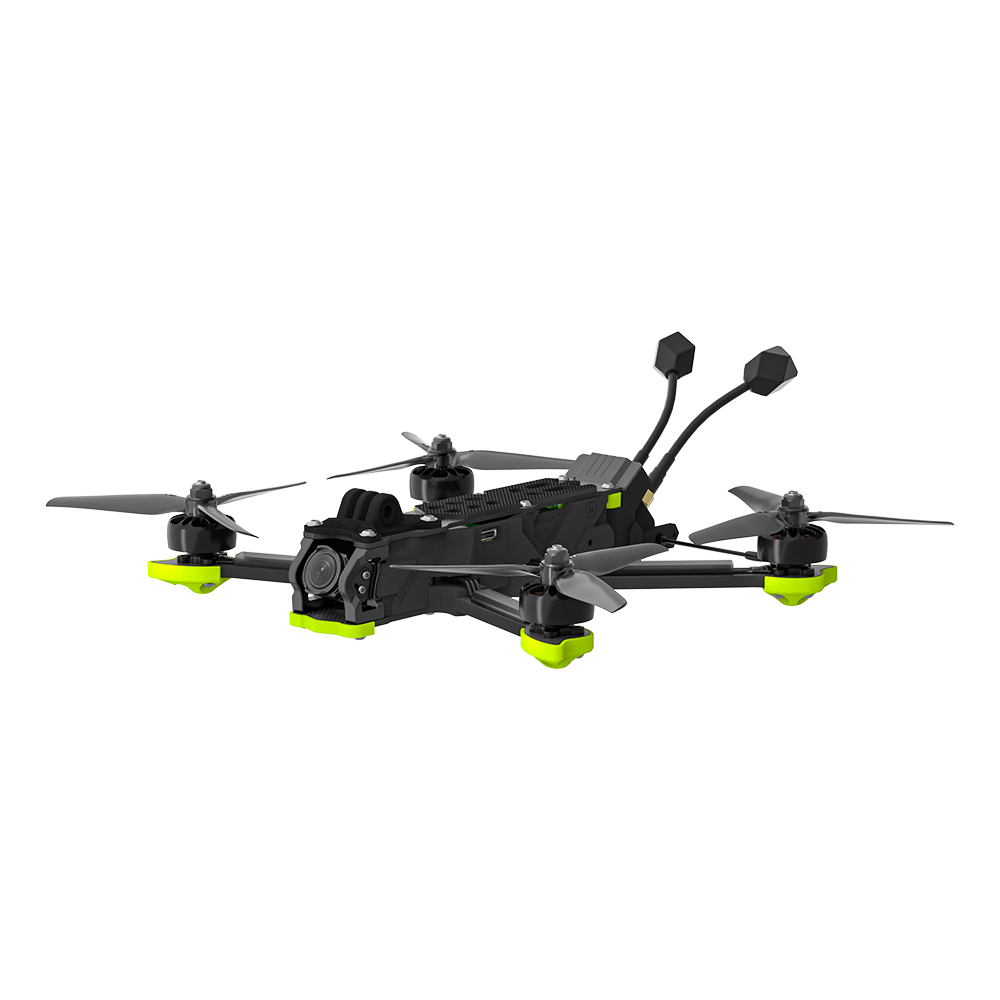

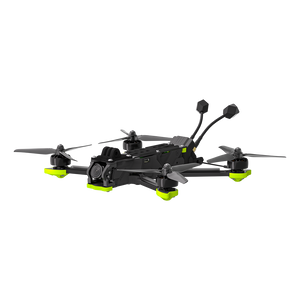

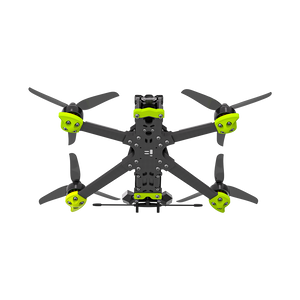

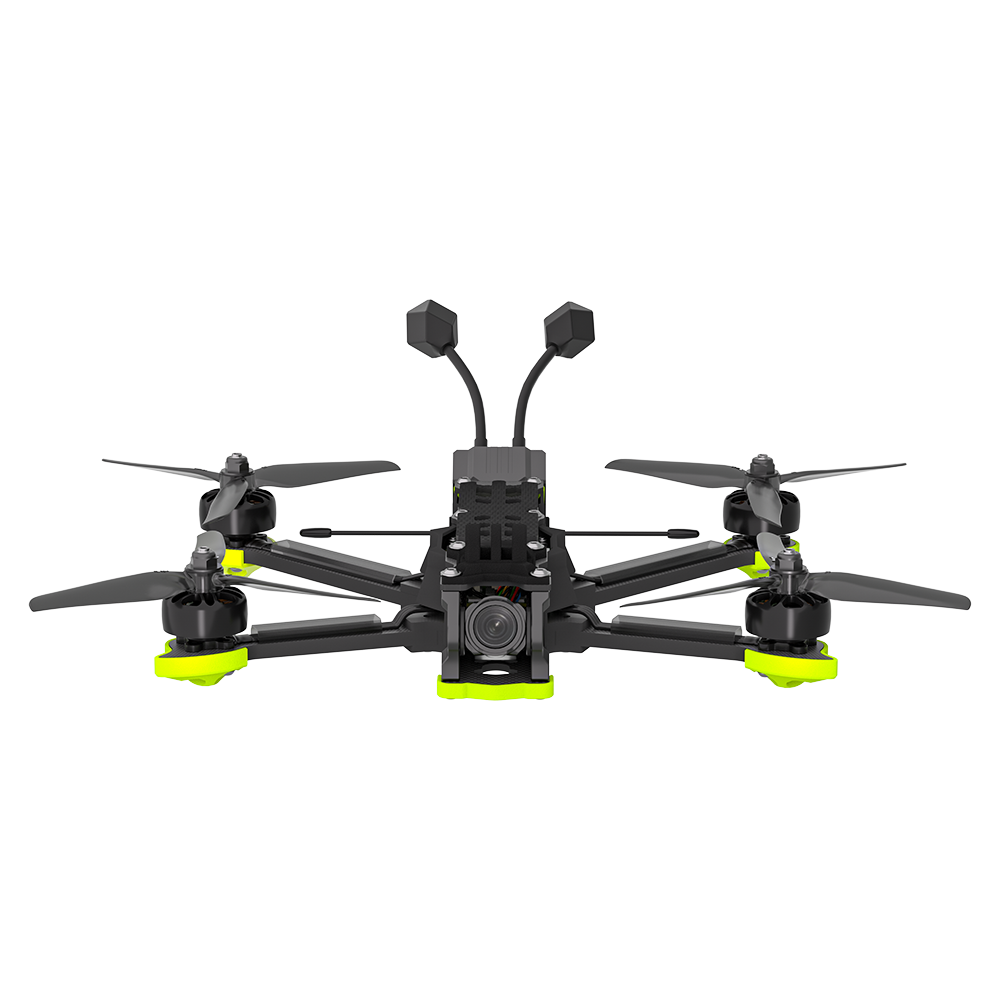

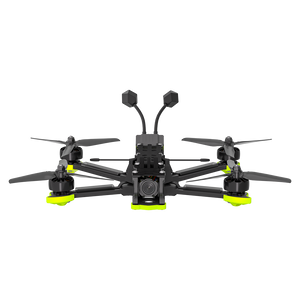

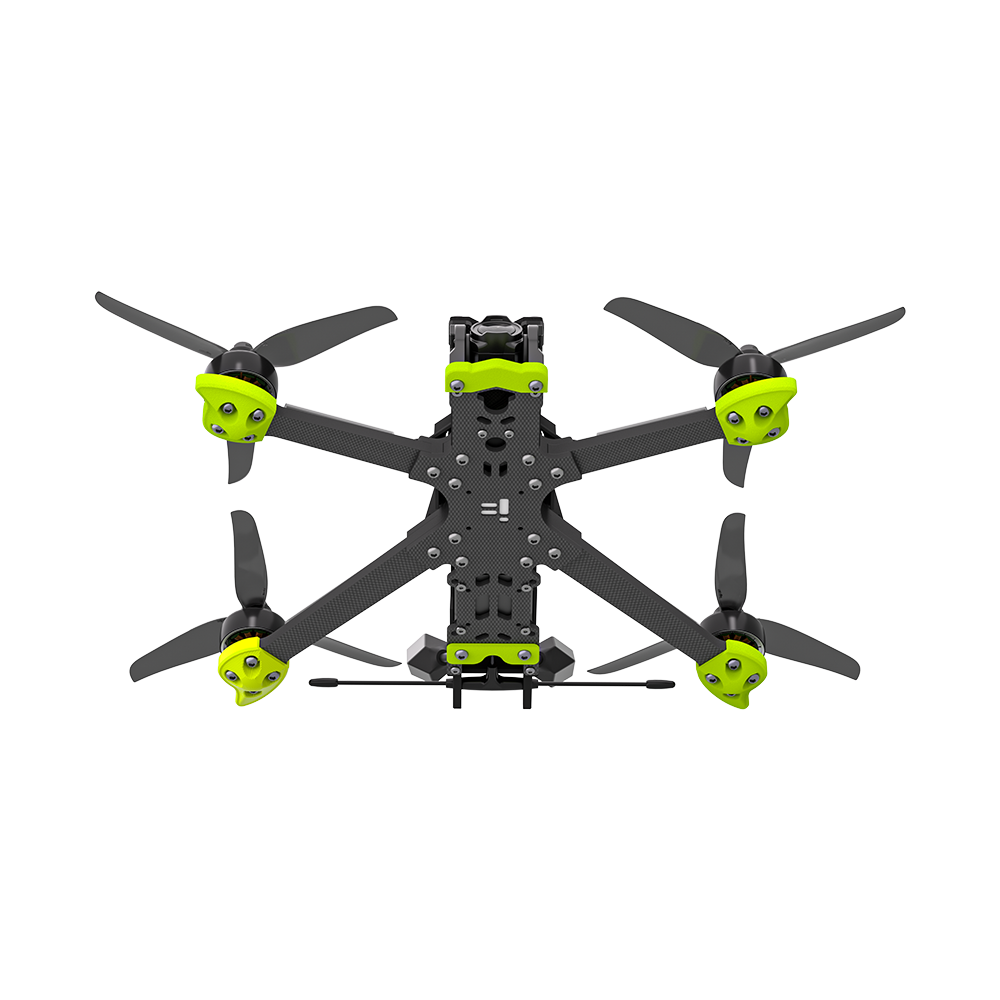

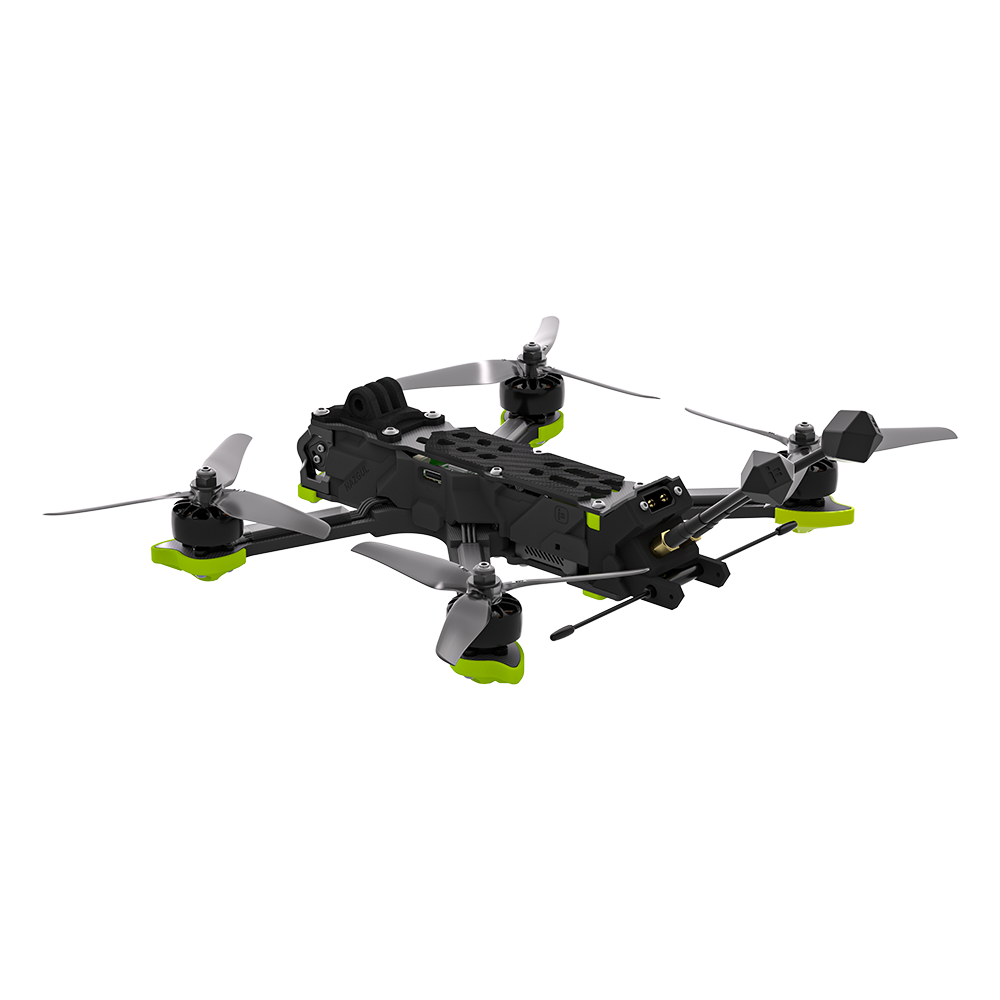

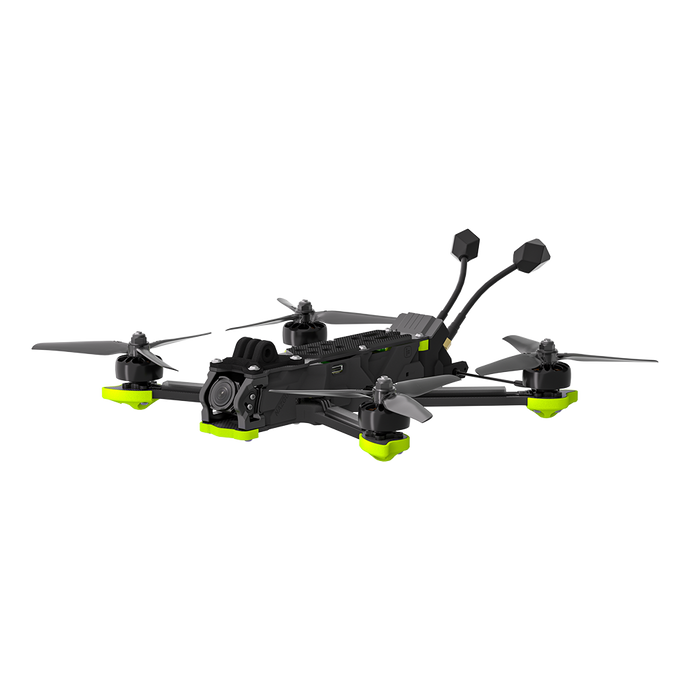

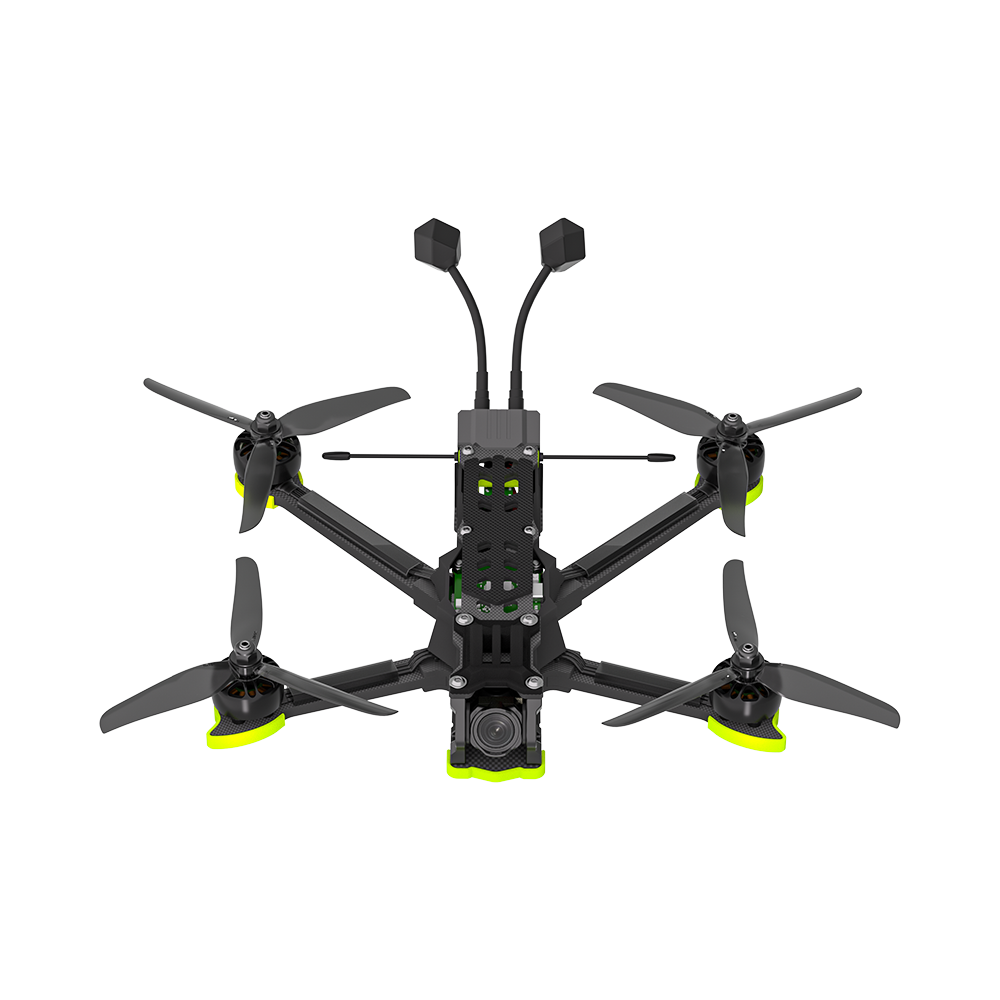

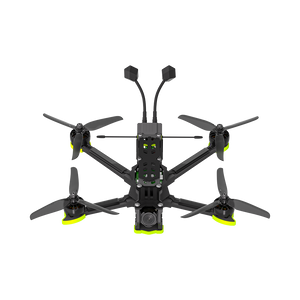

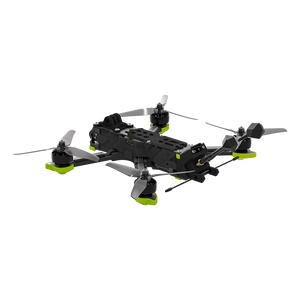

Introducing the Nazgul DC5 ECO - Redefining performance and value in a 5-inch standard freestyle drone. Equipped with the DJI Newest O3 Digital HD System, its unique design ensures no prop in view, allowing direct use of the O3 air unit's video. With the ATF435 flight controller and BLITZ E55S 2-6S 55A ESC, it delivers unparalleled performance and reliability. The carbon fiber frame with aluminum camera mount is lightweight yet durable, while the included GoPro mount offers versatility to capture your epic freestyle flights. Elevate your flying experience to new heights with the Nazgul DC5 ECO.
July 19, 2024: Battery Plug mount updated to a fixed form. The Drone upgraded to V1.1.
Sept. 10, 2024: Product upgrade, the side panels will be installed by default.
Sept. 18, 2024: Top Plate updated, same as the top plate of Nazgul5 V3 and Nazgul XL5.
Lightweight and Durable
A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
The HD version allows for the installation of ND filters, providing more control over camera exposure settings.
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Enhance user experience and streamline maintenance
Equipped with a built-in buzzer and receiver mount, this feature makes it convenient maintenance and adjustments to the receiver.
DIY customized space
Create your own personalized space with the flexibility of standard 20x20 and 30.5x30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.
Product Name: Nazgul DC5 ECO V1.1 6S O3 HD
Geometry: DC (DeadCat)
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 55A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 240mm wheelbase
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 450g±5g
Takeoff Weight: Approx. 675g±5g (With 6S 1400mAh battery)
Dimensions (L×W×H): 193×144×34 mm
Max Speed: 190 km/h (Manual Mode)
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
1 x Nazgul DC5 ECO V1.1 6S O3 HD BNF
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)
