PRODUCT DESCRIPTION

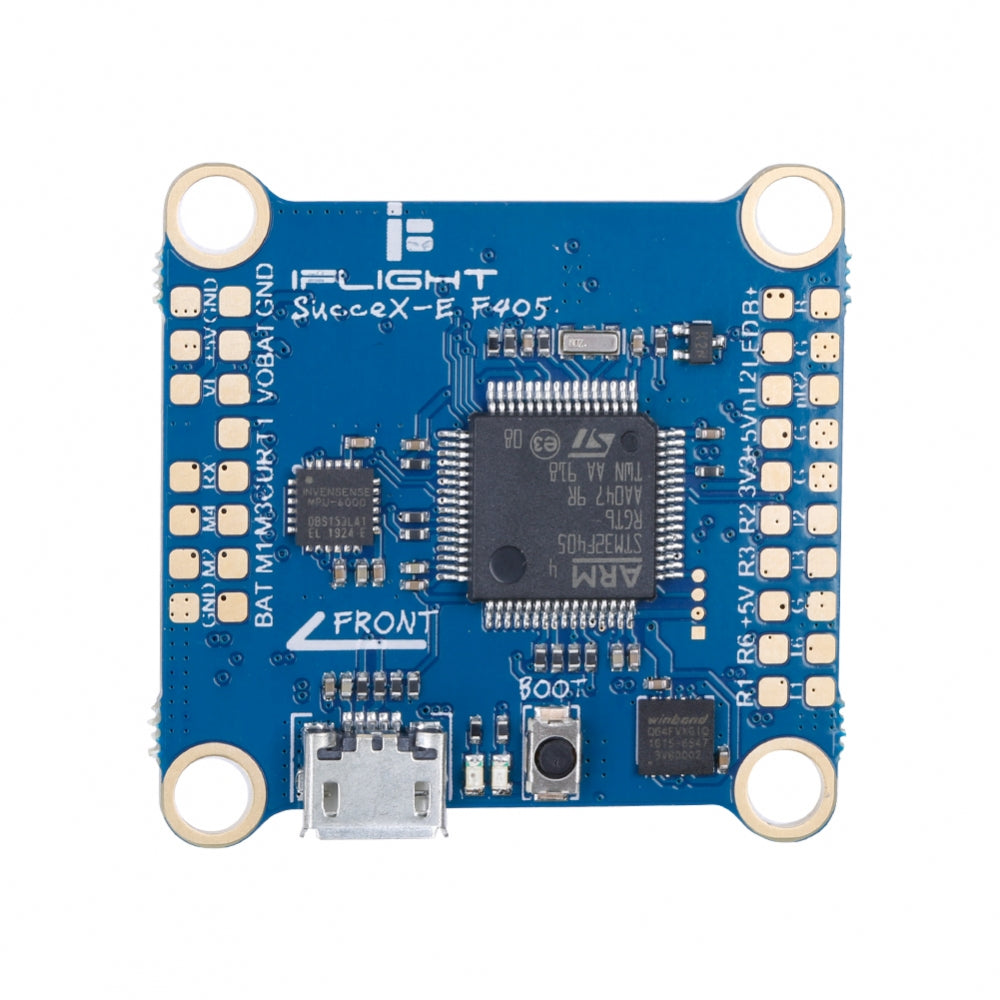

SucceX-E F4 Flight controller Specification:
- MCU：STM32F405
- IMU：MPU6000
- Betaflight OSD：YES
- Blackbox：8MB
- 4X Uarts（1 2 3 6 )
- 8 x Dshot/Proshot/Oneshot output
- 8 x individual ESC power/ signal pads
- 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
- VTX protocol：YES（IRC Tramp）
- WS2812 led Strip：YES
- Baro：No
- Beeper：YES
- Input：2-6S（Max 8S）
- BEC：5V/2.5A cont
- Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex
Physical
- Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm
- Dimensions：36*36mm
- Weight：7.6g
Force 5.8GHz 800mW VTX Adjustable
Specs:
- Input voltage: 7V～36V (@12V/380mA@800mW)
- Vdeo standard: NTSC /PAL- Output voltage/ Max current: 5V 1A
- Power levels: PIT/25mW/100mW/400mW/800mW
- Power draw @12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@100mW，250mA@400mW, 380mA@800mW
- Channels: 48 (including Raceband)- Small size: 36*36*3mm
- Mounting pattern: 30.5x30.5 (4x M3)
- Lightweight: 7.5g (excluding antenna)
- VTX telemetry: IRC Tramp- Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
- All our VTX tables can also be found here:
LINK
- IRC Tramp VTX table values: 25/25mW, 100/100mW, 400/400mW, 600/800mWi

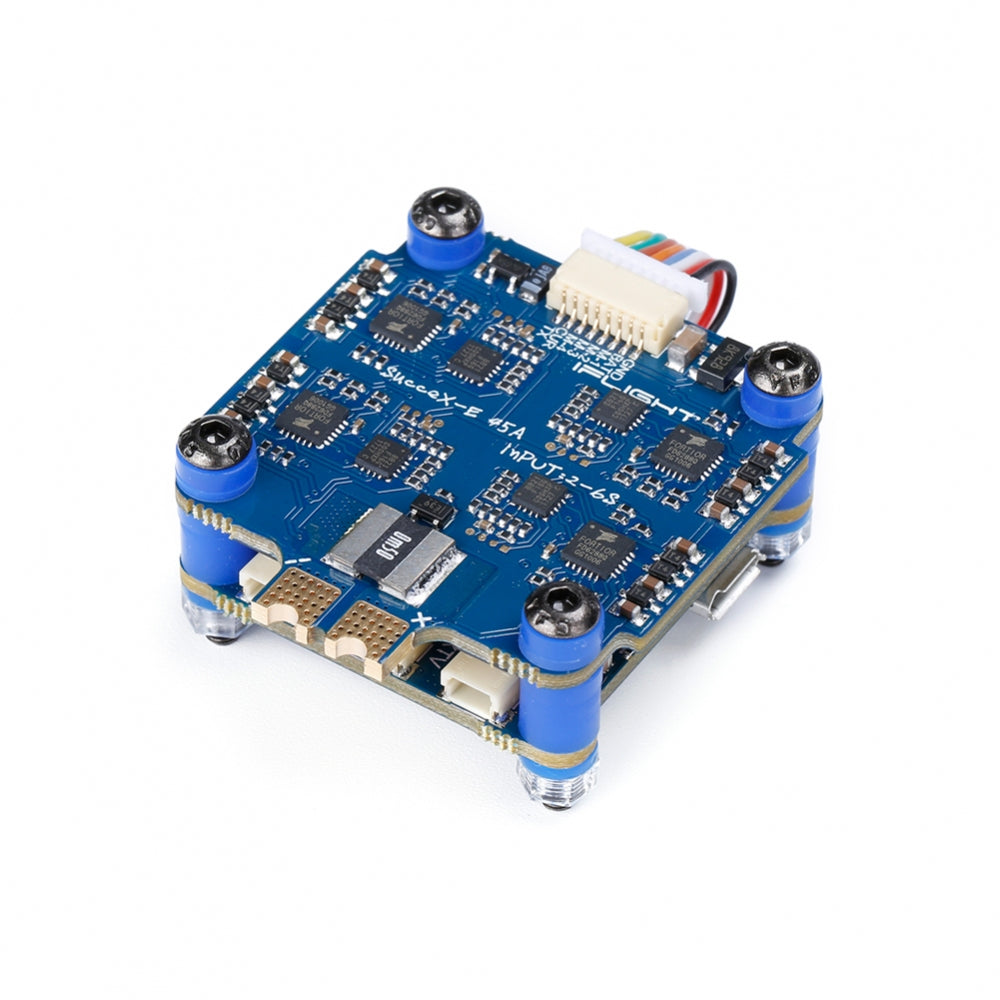

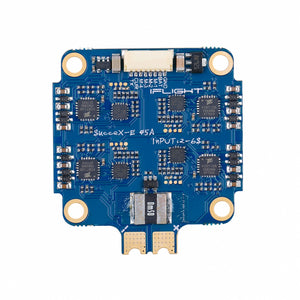

SucceX-E 45A 4in1 ESC Specification:
- Dimension: 40*43mm- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Supports 2-6S Lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: YES
- BEC: NO
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: G-H-30 BLS 16.7
http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
Downloads：
SucceX-E F4 MANUAL

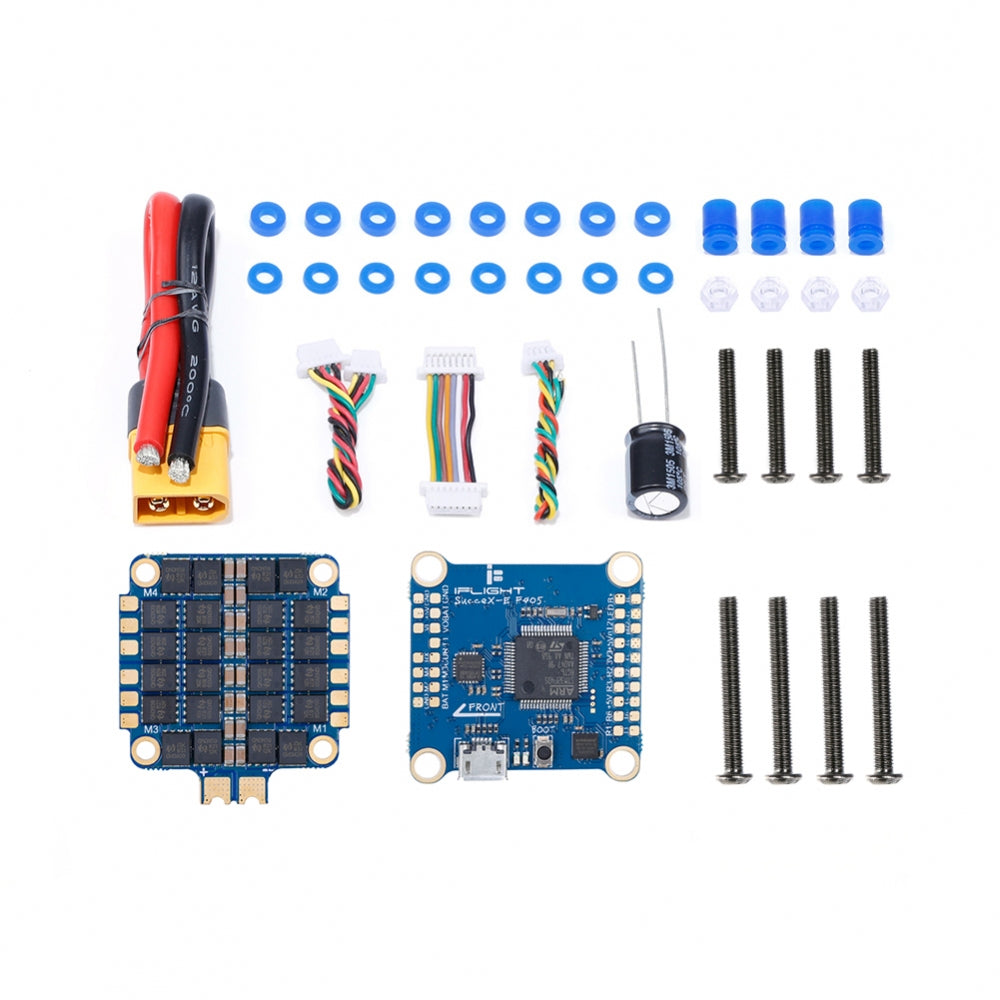

Package included:
-1pc x SucceX-E F4 Flight controller
-1pc x 45A 4in1 ESC
-1pc x SucceX Force 5.8GHz 800mW VTX Adjustable
