Improved circuit design, better components, and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
Support Betaflight, INAV, Ardupilot firmware

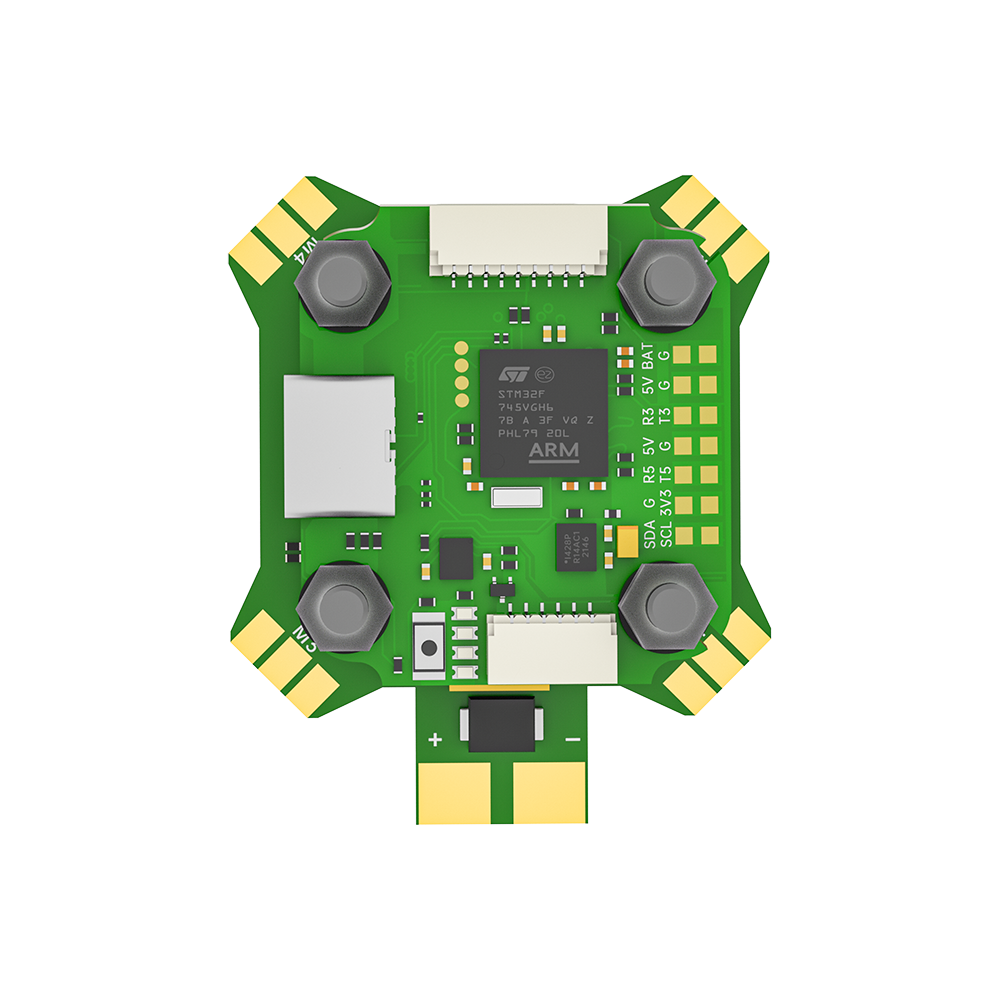

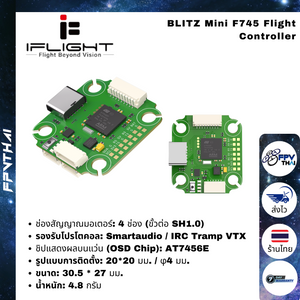

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: 5V 2.5A / 9V 2A
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware：arduplane_with_bl
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

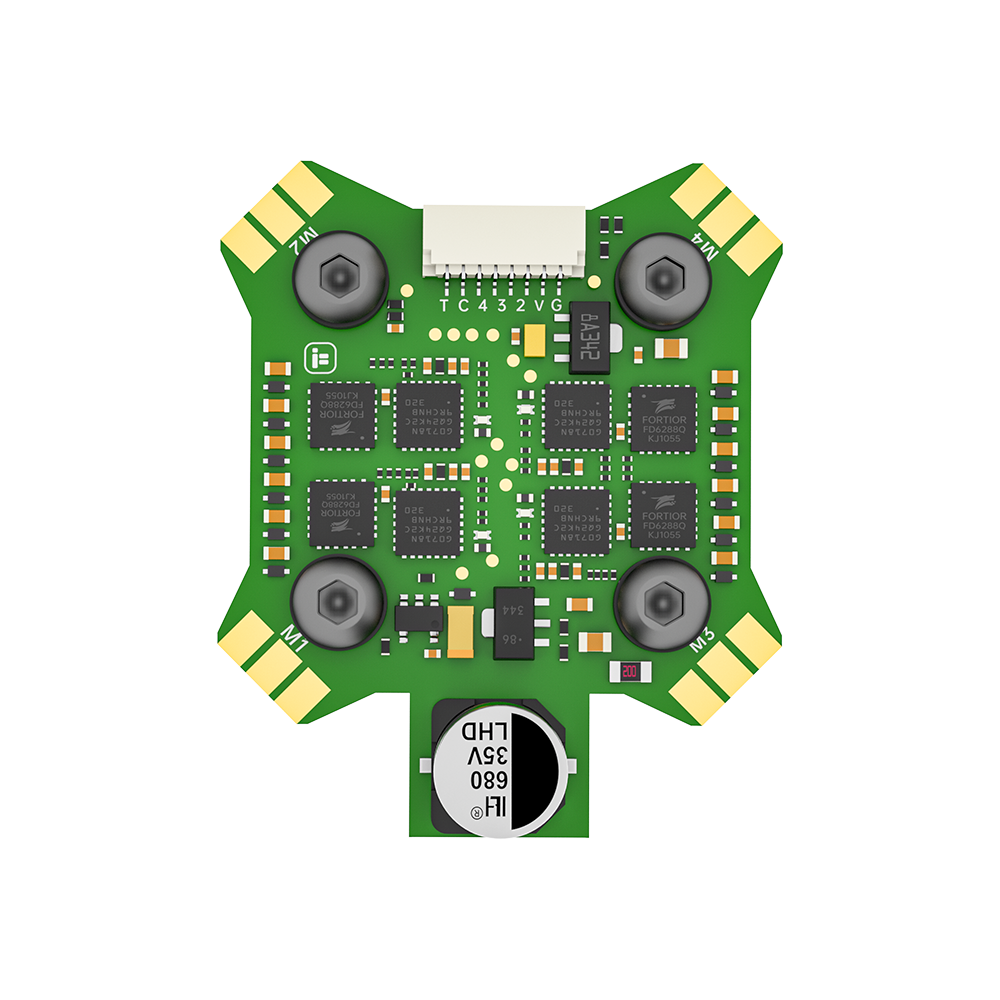

Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g

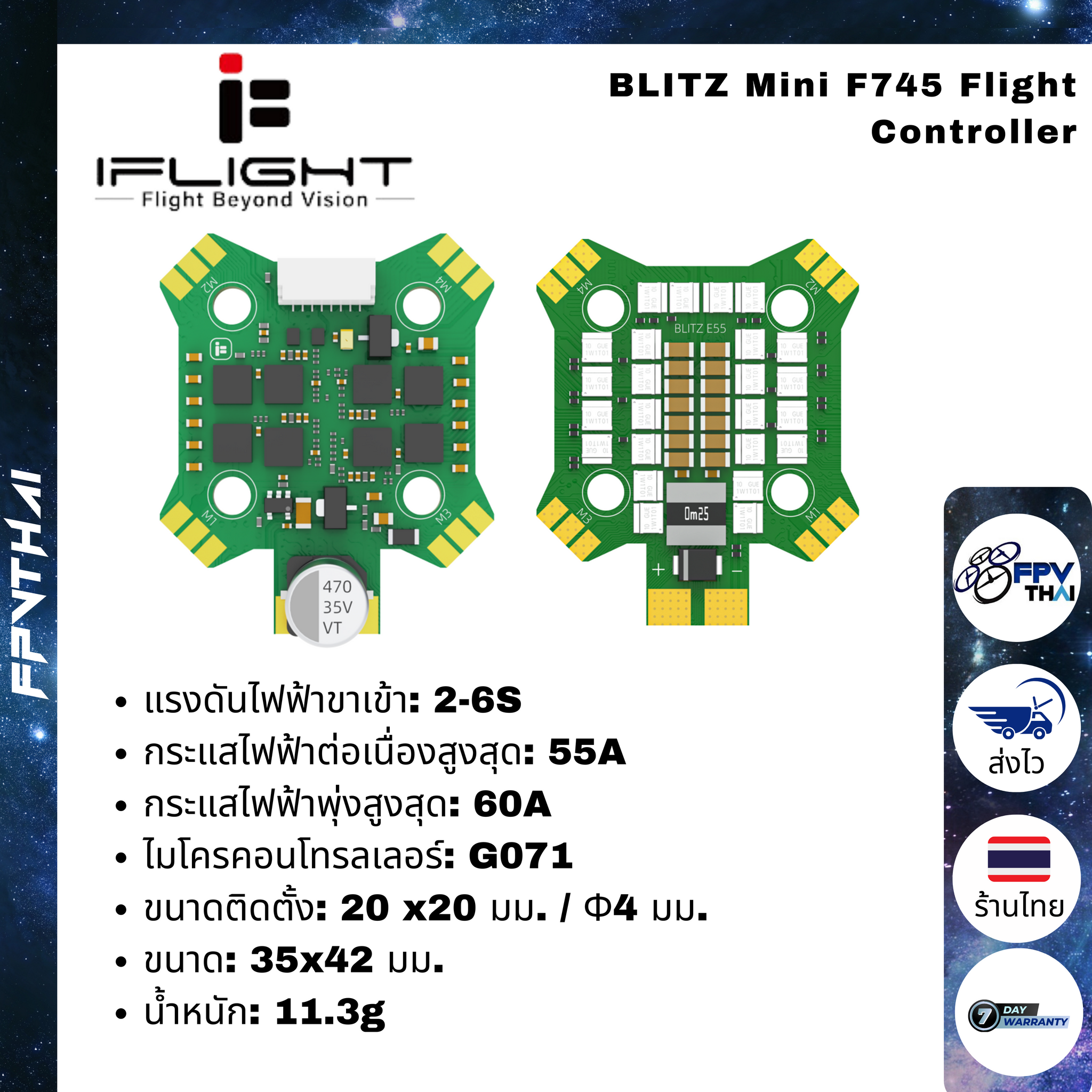

Supports 2-6S Lipo input
MCU： G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9

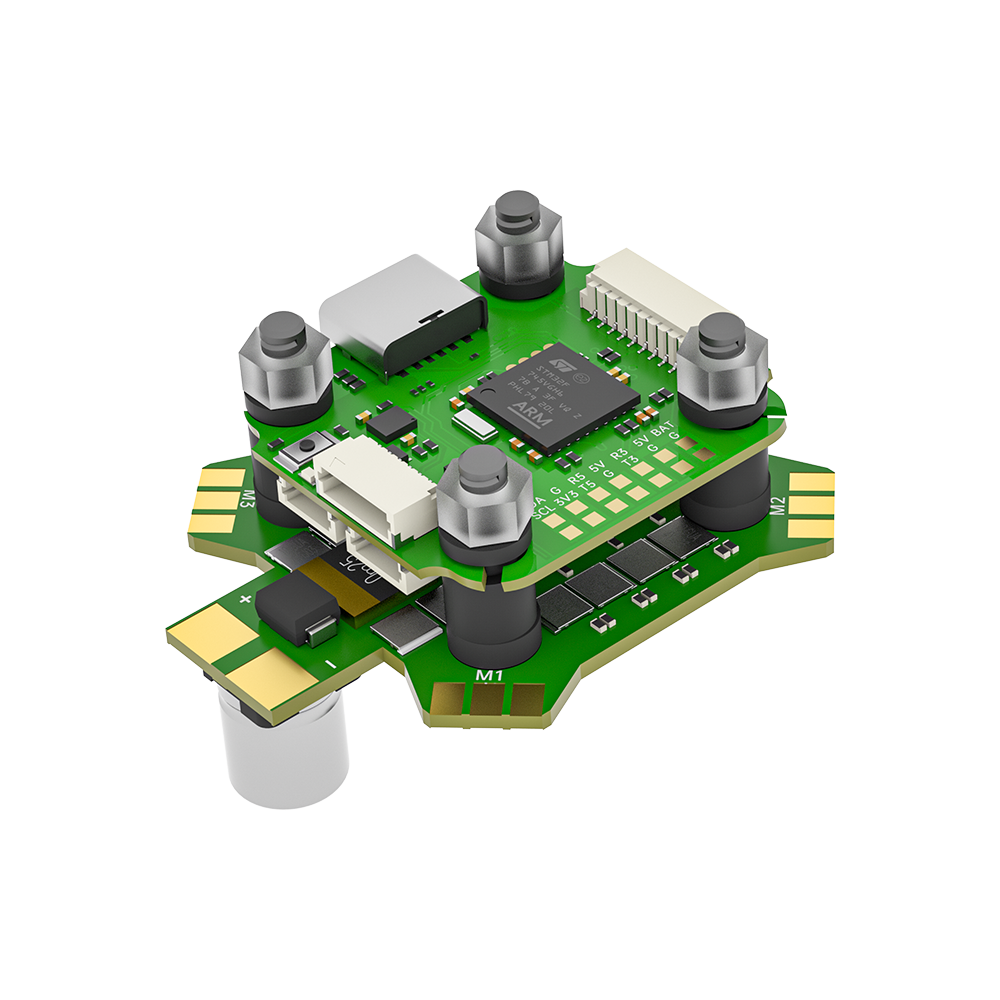

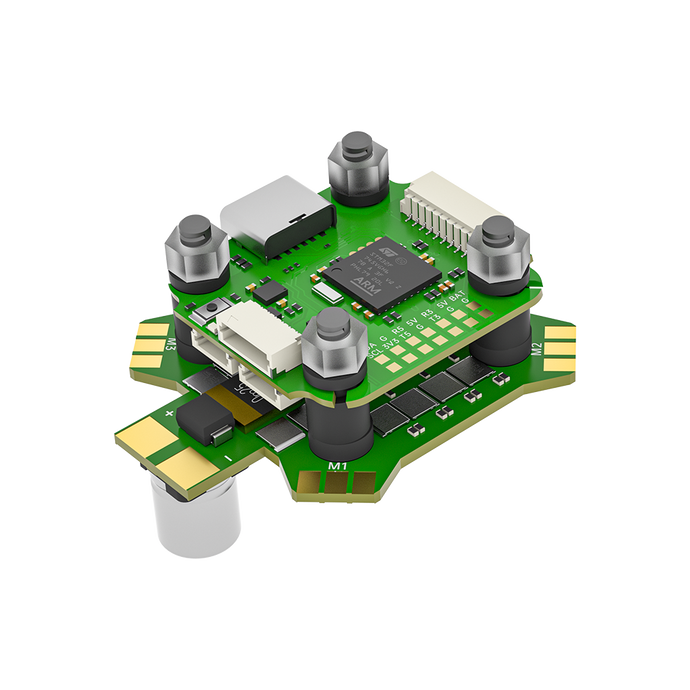

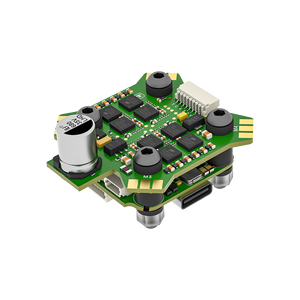

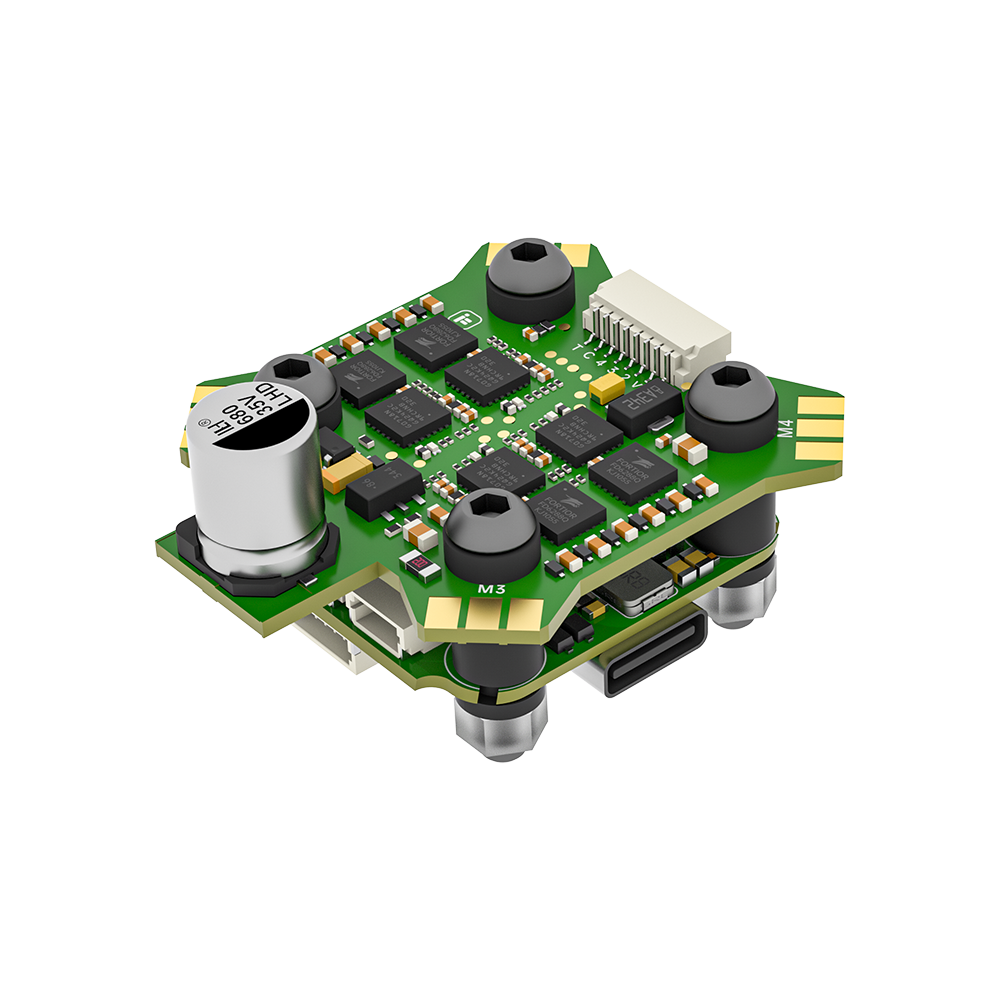

1 x BLITZ Mini F745 Flight Controller

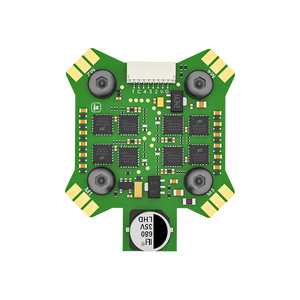

1 x BLITZ Mini E55 4-IN-1 2-6S ESC
Please use our GoogleDrive Database to download the Ardupilot firmware of the FC：
https://drive.google.com/drive/folders/1r3MNTBNYSzGeRXQg45j4IJVoW1Xjk7Y0
FC manual download
