Specification

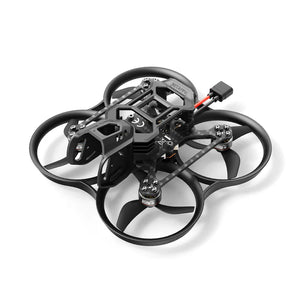

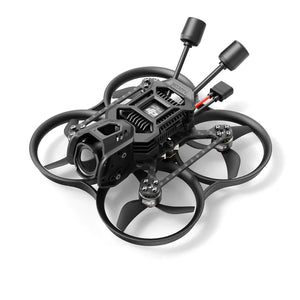

Items: Pavo20 Pro Brushless Whoop Quadcopter
Wheelbase: 93.7mm

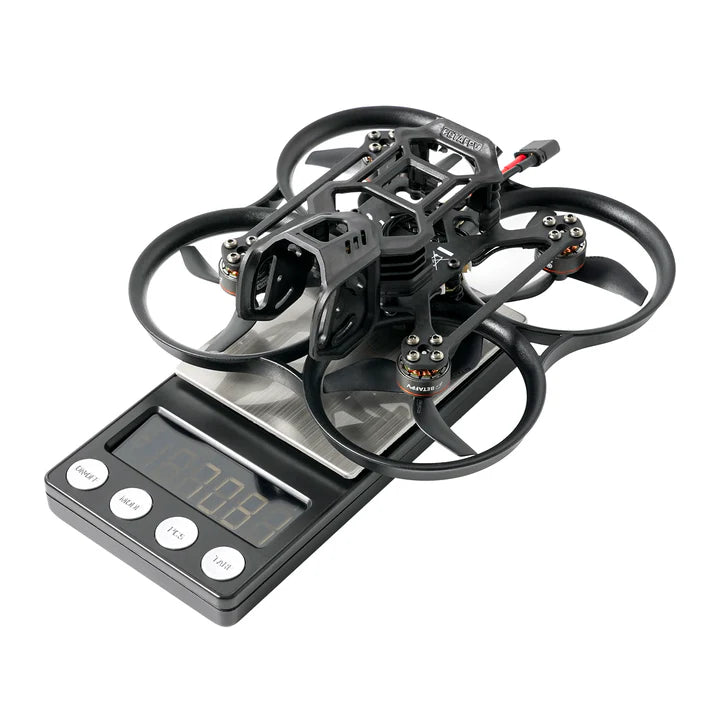

Weight(Without Battery, Air Unit): 66.3g
Support VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
Support Cam: DJI O3 Cam, Caddx Series, RunCam Series 19mm/20mm
Camera Filter Installation: Vertical
Battery Connector: XT30
Battery Slot: 20mm*Unlimited Height
Recommend Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery
FC: F4 2-3S 20A AIO FC V1
Motor: LAVA Series 1104 | 7200KV Brushless Motors
Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Flight Time: 6'40'' (LAVA Series 3S 550mAh Battery)
RX Version: ELRS, TBS
Caution: 1. Please correctly connect the battery's positive and negative terminals to prevent drone damage. 2. Battery, DJI O3 Air Unit, Caddx Vista Kit, and RunCam Link HD Digital VTX are NOT included in all packages. Please buy them separately.

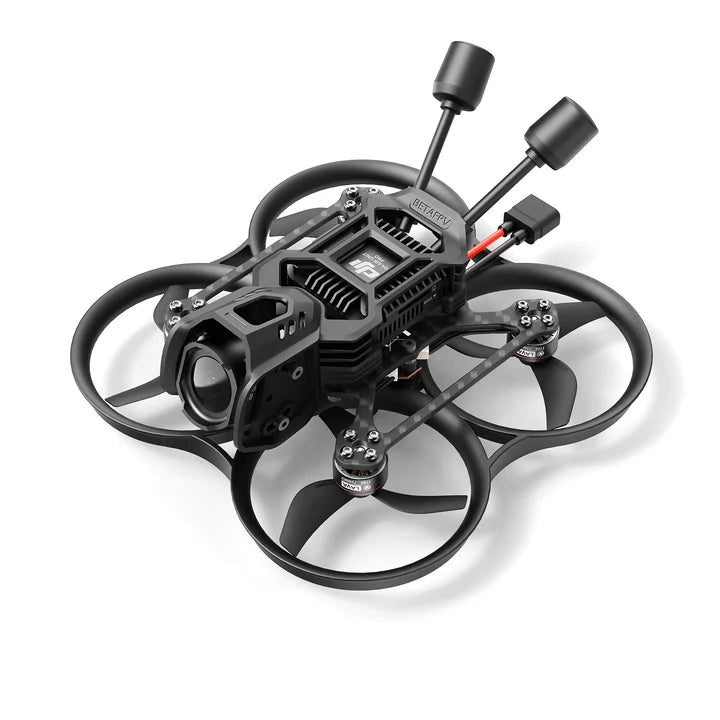

HD Digital VTX System
Pavo20 Pro supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

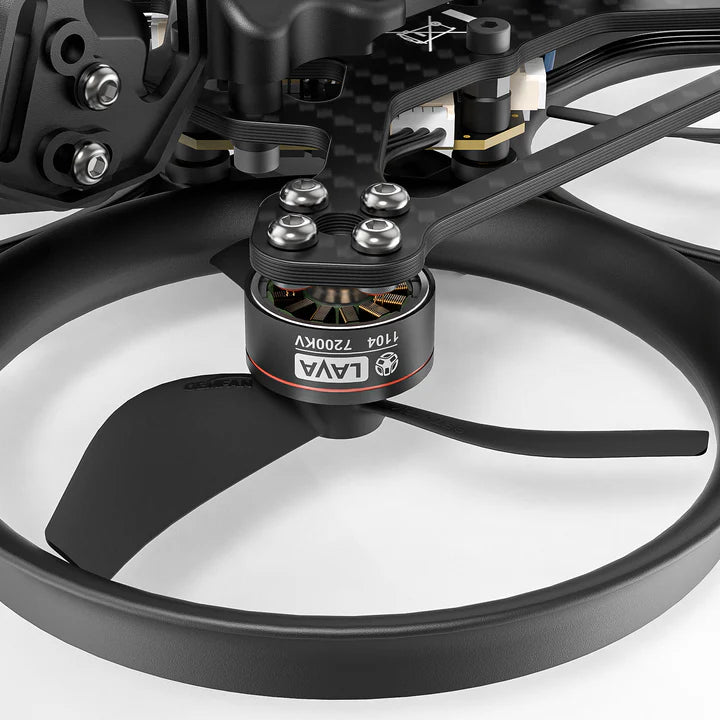

Propulsion System
It owns a propulsion system specially for Freestyle. Co-development with the Gemfan, the pioneering 2.2'' lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft). Featuring LAVA Series 1104 | 7200KV Brushless Motors and the LAVA 3S 550mAh 75C Battery we recommended, ensuring delivers a high PRM, max thrust, stable linear power like cheetah reflexes propulsion system. It achieves a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle up to 6'40'' flight time experience. All set on the exclusively sculpted for freestyle shooting Pavo20 Pro frame, which employs the principles of aerodynamics.

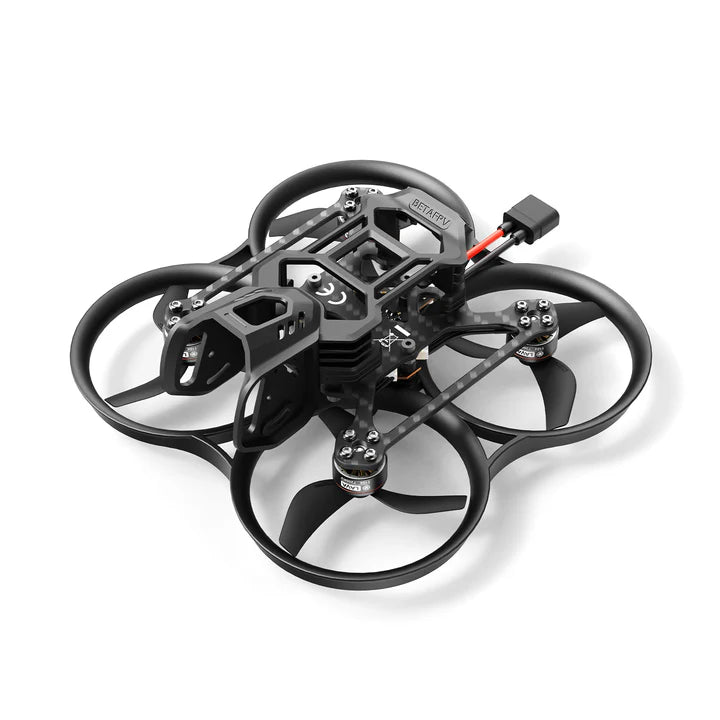

Pavo20 Pro Frame Kit
Pavo20 Pro Frame Kit, with a wheelbase of 93.7mm, is constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance, ensuring durability in demanding flight conditions. It employs the principles of aerodynamics, boosting an extra 8~11% thrust compared with without the whoop duct, and synergizes flawlessly with an enhanced powerful propulsion system to deliver unparalleled thrust. An open-ended battery strap slot that accommodates 3S batteries while keeping side-limitation slots ensures stability.

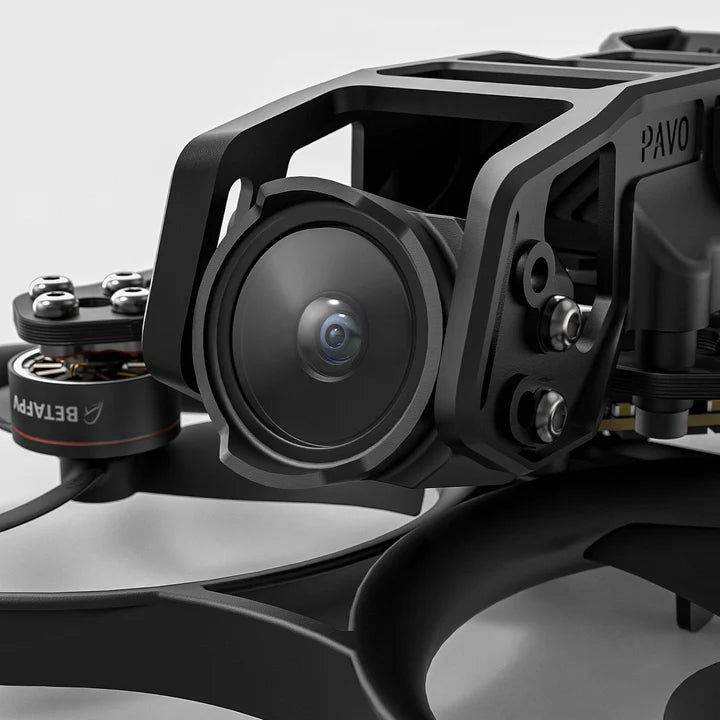

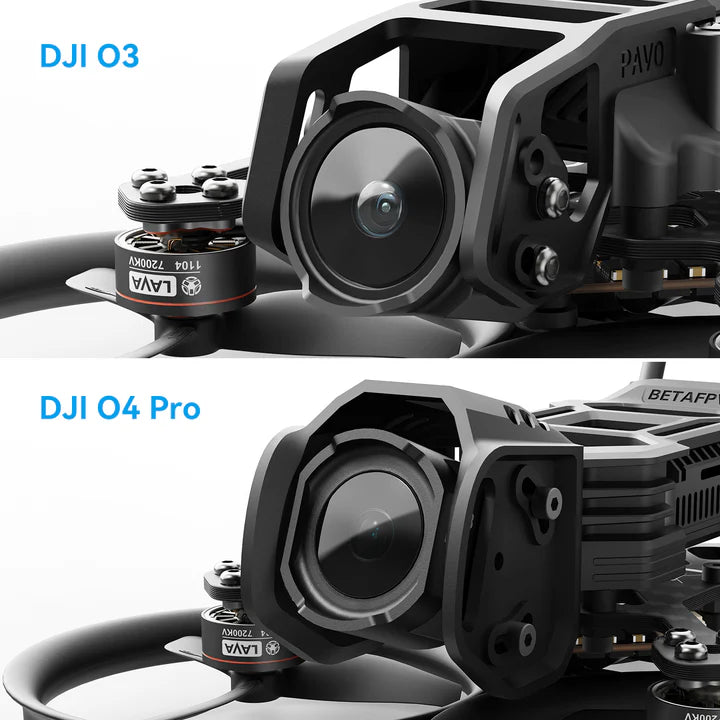

Exclusively Sculpted for HD VTX
6 camera fixed holes, including 2 new cam fixed holes for the wide-angle mode shooting, minimizing the cam side panel shadows for the wide-angle view. The cam side panel protects the lens from harm while allowing for easy vertical installation of ND filters. No more worries about angle deviations post-thrilling flights. The antenna Holder is tailored to the contours of the antenna's form and installation for a more convenient installation and stable holding. Experience the Pavo Series' Classic Rubber Damper Design, bidding farewell to "jello" in your footage and delivering a consistently smooth, HD image. The anti-vibration tips of the Pavo20 Pro are consistent with the Pavo Pico.
Please refer to Pavo Pico DJI O3 Vibration Problem.
Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, getting the frame together hassle-free in a snap with just only 8 screws, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images.
Click to watch the installation guide video for the DJI O3 Air Unit.
Flight Controller
Our F4 2-3S 20A AIO FC V1 features an ESC with a peak current of 25A, ensuring stable operation of the FC even in the event of motor stalling. The addition of a 9V 2A BEC power supply ensures the stable operation of the DJI O3 HD VTX when the battery voltage is low. It also includes a DJI O3 6-pin PMU allowing for connection to HD VTX without soldering. It integrates features such as a 16MB black box, with support for GPS, external receivers, and other devices. The redesigned solder pad layout and USB connector make installation and maintenance easier and more convenient.

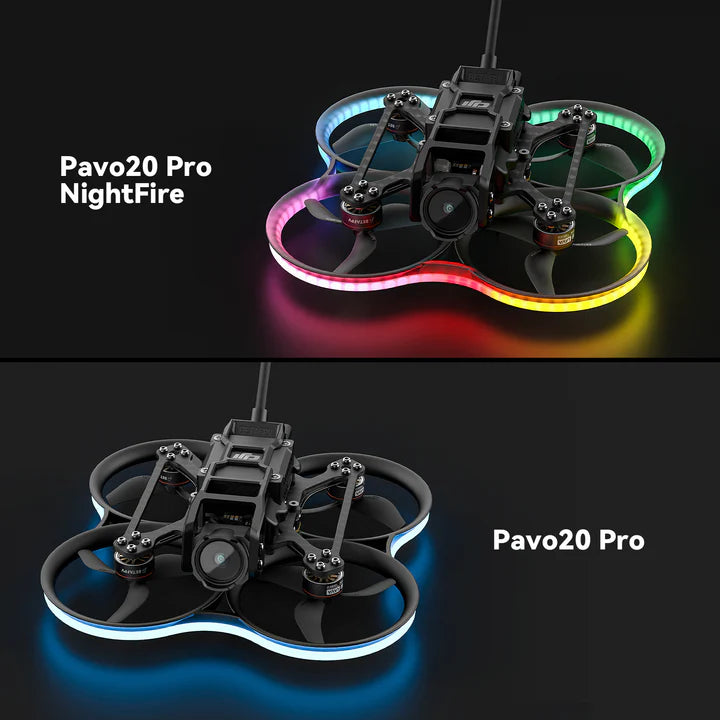

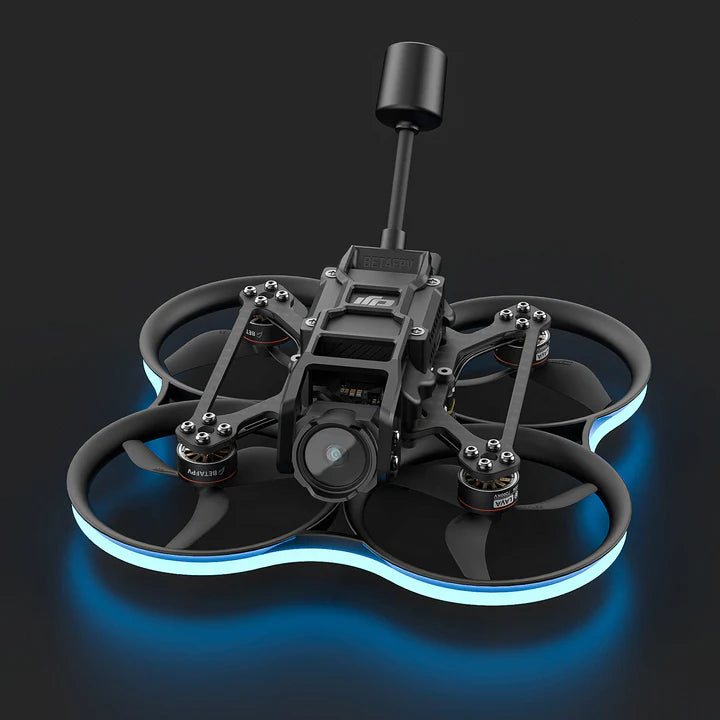

Pavo Series COB LED Strip
The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single color option of ice blue, white, green, or red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.
ND Filter for DJI O3 Camera
BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo20 Pro, Pavo25 V2, Pavo20 , Pavo35, and Pavo Pico Brushless Whoop Quadcopter. These ND filters only vertical installate on the Pavo20 Pro. These ND filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.
Package
- 1 * Pavo20 Pro Brushless Whoop Quadcopter
- 1 * Pavo20 Pro HD VTX Bracket
- 1 * HD VTX Bracket Screw Package
- 1 * Pavo Series COB LED Strip Accessory Kit (Ice Blue)
- 4 * Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
- 1 * PCBA | Type-C Adapter Board
- 1 * 4Pin Adapter Cable
