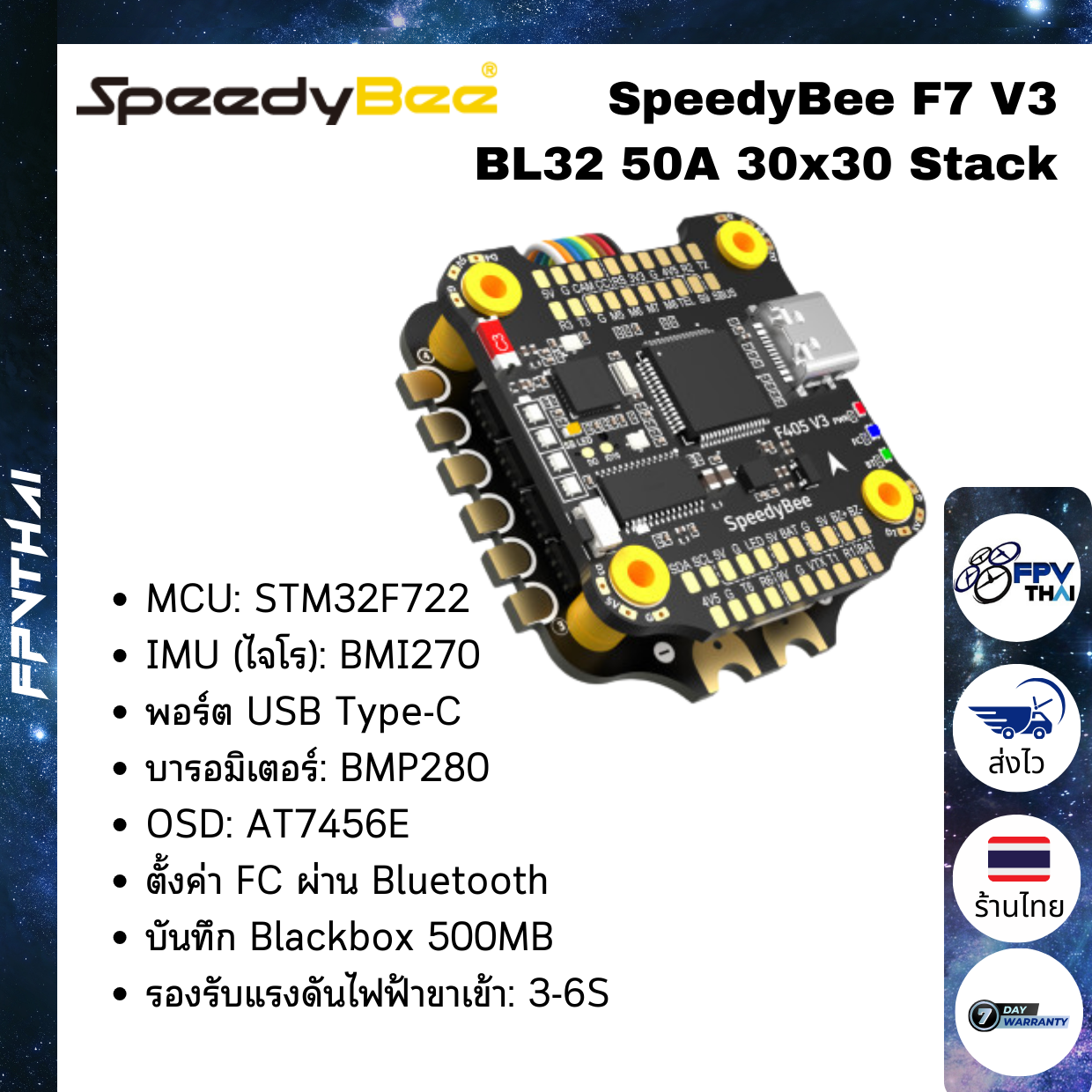

SpeedyBee F7 V3 BL32 50A 30x30 Stack
SpeedyBee F7 V3 BL32 50A 30x30 Stack
SpeedyBee F7 V3 BL32 50A 30x30 Stack
SpeedyBee F7 V3 BL32 50A 30x30 Stack

SpeedyBee F7 V3 BL32 50A 30x30 Stack

Speedybee
3,500.00 ฿
3,500.00 ฿
Shipping calculated at checkout.

  • SpeedyBee F7 V3 BL32 50A 30x30 Stack
    NOW THIS IS A REAL
    FLAGSHIP STACK
    SpeedyBee F7V3 STACK
    SpeedyBee F7 V3
    PREMIUM SPEC.
    AFFORDABLE PRICE
    SpeedyBee F7V3 STACK

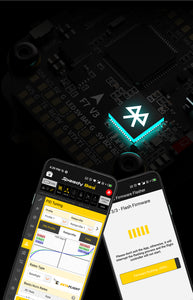

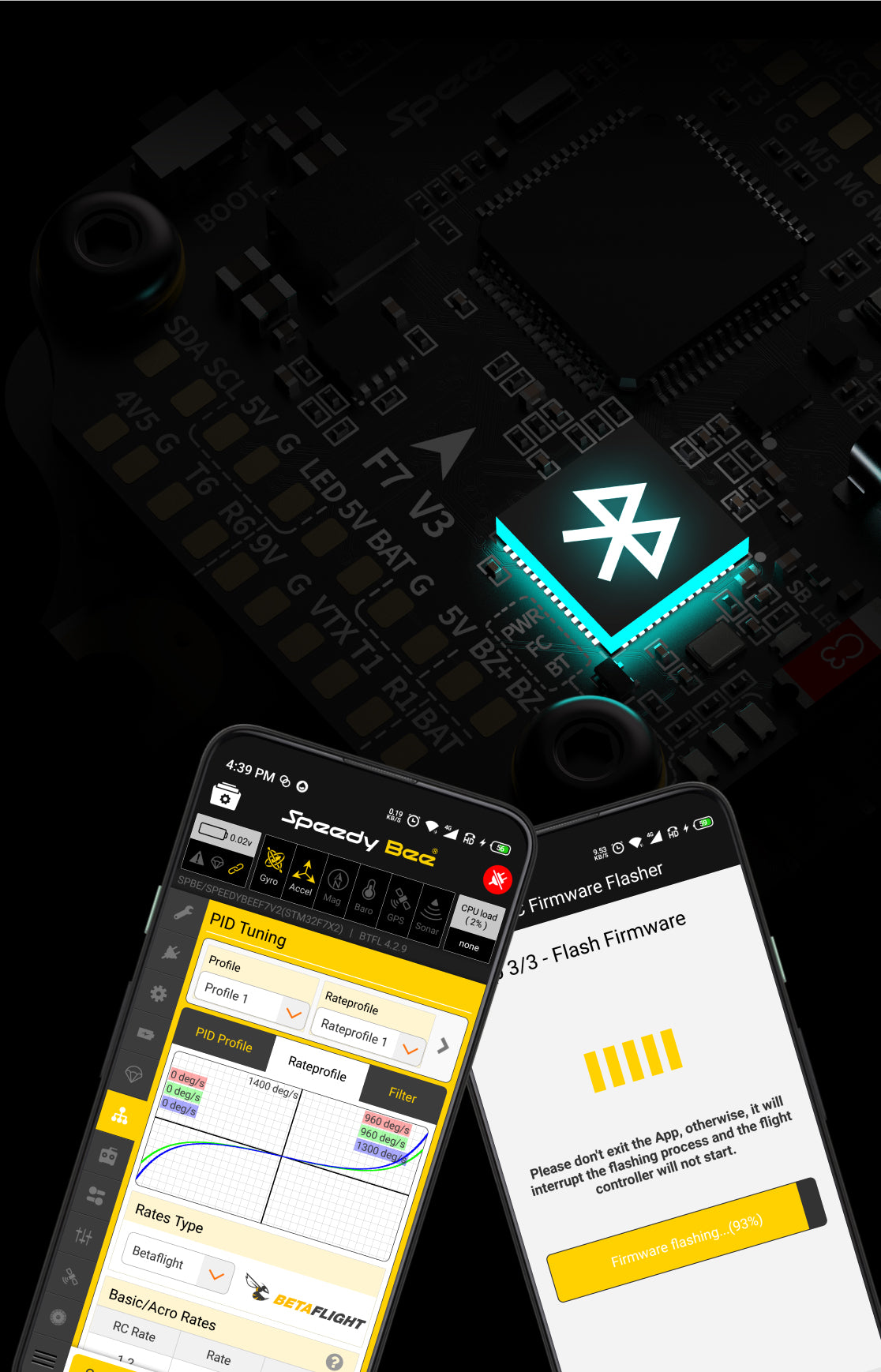

    Flash your firmware 33% faster
    wirelessly + full FC configuration
    Built with a better Bluetooth/WiFi 2-in-1 chip for 33% faster wireless data
    transfer. Update FC firmware with your smartphone in just 1 minute!
    Connect this FC via Bluetooth and fully configure any setting for
    Betaflight/INAV as you want.
    SpeedyBee F7V3 STACK
    Get your Blackbox data in
    1 minute anytime, anywhere
    With an optimized algorithm and upgraded Bluetooth/WiFi chip, you can
    dive into your Blackbox data every time you land your quad. Just take
    your smartphone out, connect, and download your flight in 20 seconds.
    The path to progress has never been easier.
    SpeedyBee F7V3 STACK
    Hate soldering?
    Just plug them all in!
    It’s 2022, so having a plug vs soldering option is a must! Plug in your
    digital video transmitter, receiver, camera, VTX, and GPS to complete
    your build in no time. Also comes with 4x LED plugs so you can light
    up your quad with no headache. Prefer soldering? Just flip the board
    and start working on it.
    SpeedyBee F7V3 STACK
    Change your motor
    direction wirelessly
    Finishing your latest build? Just replaced your
    motor after a crash? Take your smartphone out,
    and configure your motor direction wirelessly
    with the latest SpeedyBee app. Works for all
    BLHeli32 / BLHeli_S / BlueJay ESCs.
    SpeedyBee F7V3 STACK
    8 motors output, perfect for
    your X8 cinelifters!
    There’s no other X8 flight controller better than this. Forget about
    crawling through your massive build just to plug in that USB cable.
    Just take out your phone to configure that X8 monster wirelessly
    before that challenging commercial shot. Professional FPV pilots
    got no time to waste.
    SpeedyBee F7V3 STACK
    Light up your quad in no time
    with 4x LED plugs
    Need more visibility at night? Just plug in your LEDs and blaze the
    darkest trail you can find, no soldering required. With just one tap
    on the Boot button, you can cycle through all different LED presets*
    and pick the one you love!
    *Or long press the boot button to switch to Betaflight LED mode
    SpeedyBee F7V3 STACK
    Forgot your LiPo checker?
    Just look at the FC!
    Built with a 4-level LED battery indicator, now you can fly anywhere
    worry-free - even without your lipo checker!
    SpeedyBee F7V3 STACK
    32MB (typical FC memory) X 16
    =500MB onboard Blackbox
    flash memory
    Store up to 100 complete flights with our huge 500MB onboard
    Blackbox flash memory. Or keep your encrypted Area 51 files in
    it for your top-secret Man in Black mission. Whatever suits your
    tactical purpose.

    *The Flash memory chip manufacture calculates the capacity by a
    rate of 1000(instead of 1024), so the display capacity on your
    computer will be slightly less than 500MB.
    SpeedyBee F7V3 STACK

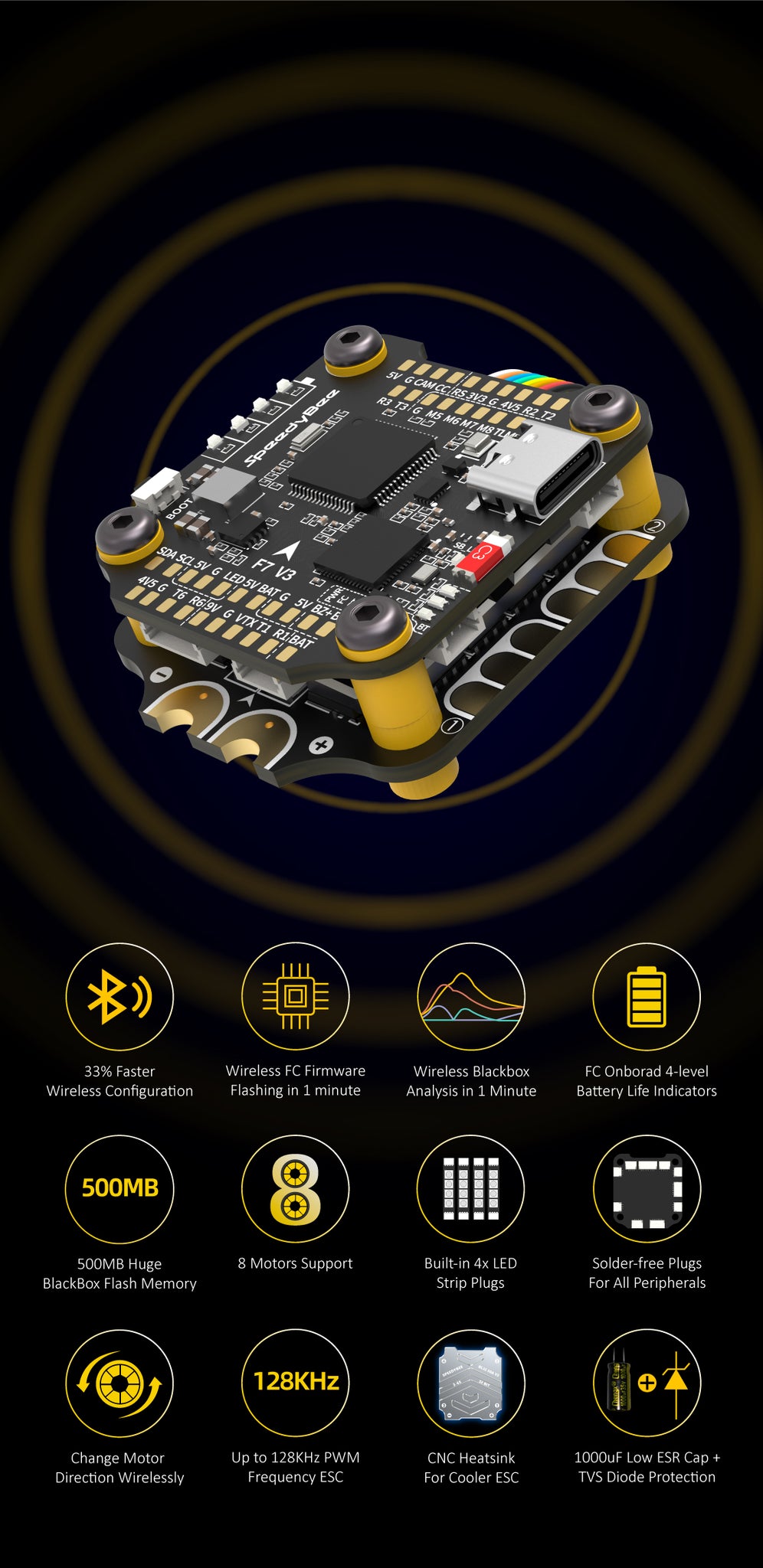

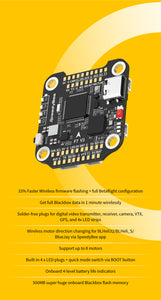

    And packed with other useful
    features
    ● 9V 4A + 5V 2A individual BECs
    ● Power your GPS with a USB cable - no battery needed
    ● 22mm cutouts for FPV camera in your tight build
    ● Built-in barometer for accurate height calculation
    SpeedyBee F7V3 STACK
    SpeedyBee BL32 50A 4-in-1 ESC
    50A ESC MADE FOR CHAMPIONS
    SpeedyBee F7V3 STACK
    When we say 50A, we mean it.
    Real 50A output, ready for your baddest, meanest 6S motors.
    Blast through any obstacle during freestyle with no worry, or
    keep that highest throttle position during races.
    SpeedyBee F7V3 STACK
    1000uF Low ESR capacitor + TVS
    protective diode = Extra protection
    The ESC is built with TVS protective diode to absorb the voltage spike
    when you plug in the battery, or during crashes that block your props.
    We also provide a humongous 1000uF low ESR capacitor, ensuring
    clean data from the gyro to the FC.
    Tested by 2 top racing pilots with both over 1500 packs, or you can
    put it to the test yourself.
    SpeedyBee F7V3 STACK
    Wanna crank it up to 128KHz PWM?
    Why not?
    With F4 MCU, you can set the PWM frequency up to 128KHz. Find
    the best PWM frequency* to get for your build without any limitation.

    * The ideal PWM frequency for each build varies depending on the
    frame, motors, props, and other factors. Higher PWM frequency
    doesn't necessarily means smoother flight. If the default 48KHz is
    not working for your build, you can increase the value gradually
    until you find the sweet spot. Check your motor temperature to
    avoid overheating.
    SpeedyBee F7V3 STACK
    CNC heat sink shield =
    no overheating in any condition
    Built with high-quality CNC heat sink to significantly reduce the
    heat from your MOSFETs ensuring stable current flow at a high
    throttle position. Great benefit in a stylish blue finish.
    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK

    SpeedyBee F7V3 STACK
    Specifications
    Product Name SpeedyBee F7 V3 Flight Controller
    MCU STM32F722
    IMU(Gyro) BMI270
    USB Port Type Type-C
    Barometer BMP280
    OSD Chip AT7456E chip
    BLE Bluetooth Supported. Used for Flight Controller configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip
    Flash FC Firmware Wirelessly Supported. Please enter MENU > FC Firmware Flasher
    Download/Analyze Blackbox Supported.Please enter MENU > Blackbox Analyzer
    DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering.
    6-pin DJI Air Unit Plug Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
    Flash(for BlackBox) 500MB
    BetaFlight Camera Control Pad Yes(CC pad on the front side)
    Power Input 3S - 6S Lipo
    5V Output 10 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A.
    9V Output 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A.
    3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
    4.5V Output Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
    ESC Signal Pads M1 - M4 on bottom side and M5-M8 on front side.
    UART 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6)
    ESC Telemetry UART R4(UART4)
    I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
    LED Pad Used for WS2812 LED controlled by Betaflight firmware.
    Buzzer BZ+ and BZ- pad used for 5V Buzzer
    BOOT Button Supported.
    [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
    [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
    RSSI Input Supported. Named as RS on the front side.
    SmartPort Supported
    Supported Flight Controller Firmware BetaFlight(Default),INAV
    Firmware Target Name SPEEDYBEEF7V3
    Mounting 30.5 x 30.5mm( 4mm hole diameter)
    Dimension 41(L) x 38(W) x 8.1(H)mm
    Weight 10.7g
    Product Name SpeedyBee BL32 50A 4-in-1 ESC
    Firmware SpeedyBee BL32 50A
    Continuous Current 50A * 4
    Burst Current 55A(5seconds)
    TVS Protective diode Yes
    Heat Sink Yes
    External Capacitor 1000uF Low ESR Capacitor(In the package)
    ESC Protocol DSHOT300/600
    PWM Frequency Range 16KHz-128KHz
    Power Input 3-6S LiPo
    Power Output VBAT
    Current Sensor Support (Scale=490 Offset=0)
    ESC Telemetry supported
    Mounting 30.5 x 30.5mm( 4mm hole diameter)
    Dimension 45.6(L) * 40(W) * 8.8mm(H)
    Weight 19.2g with heat sink
